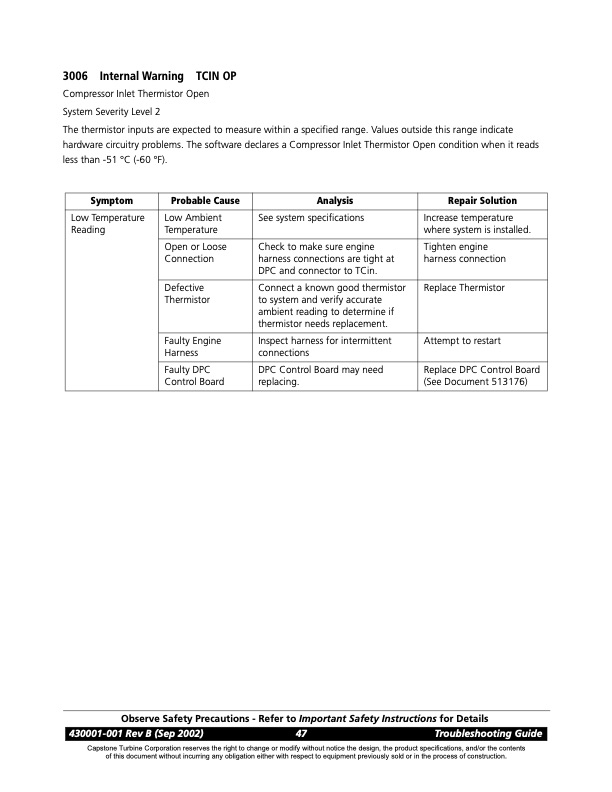

3006 Internal Warning TCIN OP Compressor Inlet Thermistor Open System Severity Level 2 The thermistor inputs are expected to measure within a specified range. Values outside this range indicate hardware circuitry problems. The software declares a Compressor Inlet Thermistor Open condition when it reads less than -51 °C (-60 °F). Symptom Probable Cause Analysis Repair Solution Low Temperature Reading Low Ambient Temperature See system specifications Increase temperature where system is installed. Open or Loose Connection Check to make sure engine harness connections are tight at DPC and connector to TCin. Tighten engine harness connection Defective Thermistor Connect a known good thermistor to system and verify accurate ambient reading to determine if thermistor needs replacement. Replace Thermistor Faulty Engine Harness Inspect harness for intermittent connections Attempt to restart Faulty DPC Control Board DPC Control Board may need replacing. Replace DPC Control Board (See Document 513176) Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 47 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 3000 FAULT CODES Sensor Faults
