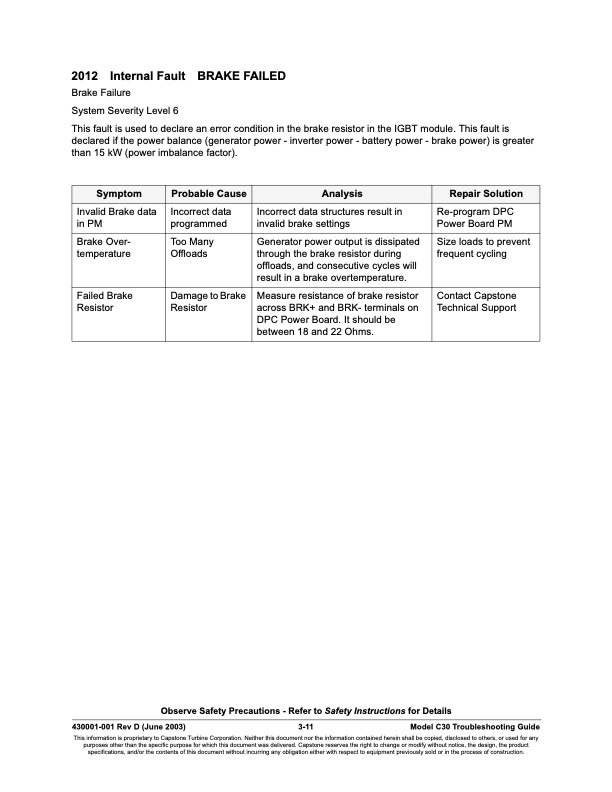

2012 Internal Fault BRAKE FAILED Brake Failure System Severity Level 6 This fault is used to declare an error condition in the brake resistor in the IGBT module. This fault is declared if the power balance (generator power - inverter power - battery power - brake power) is greater than 15 kW (power imbalance factor). Symptom Probable Cause Analysis Repair Solution Invalid Brake data in PM Incorrect data programmed Incorrect data structures result in invalid brake settings Re-program DPC Power Board PM Brake Over- temperature Too Many Offloads Generator power output is dissipated through the brake resistor during offloads, and consecutive cycles will result in a brake overtemperature. Size loads to prevent frequent cycling Failed Brake Resistor Damage to Brake Resistor Measure resistance of brake resistor across BRK+ and BRK- terminals on DPC Power Board. It should be between 18 and 22 Ohms. Contact Capstone Technical Support Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 3-11 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 2000 FAULT CODES Power Board Faults Capstone
