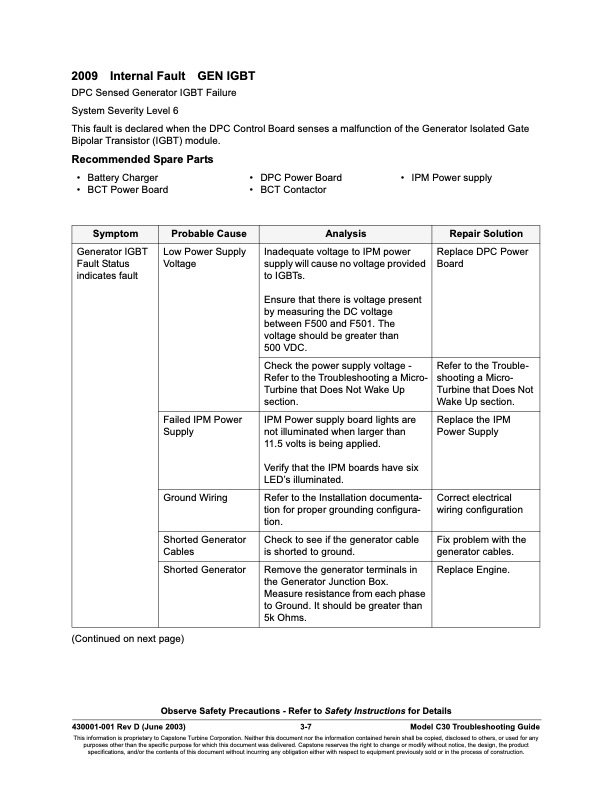

Text from PDF Page: 007
2009 Internal Fault GEN IGBT DPC Sensed Generator IGBT Failure System Severity Level 6 This fault is declared when the DPC Control Board senses a malfunction of the Generator Isolated Gate Bipolar Transistor (IGBT) module. Recommended Spare Parts • Battery Charger • DPC Power Board • IPM Power supply • BCT Power Board • BCT Contactor Symptom Probable Cause Analysis Repair Solution Generator IGBT Fault Status indicates fault Low Power Supply Voltage Inadequate voltage to IPM power supply will cause no voltage provided to IGBTs. Ensure that there is voltage present by measuring the DC voltage between F500 and F501. The voltage should be greater than 500 VDC. Replace DPC Power Board Check the power supply voltage - Refer to the Troubleshooting a Micro- Turbine that Does Not Wake Up section. Refer to the Trouble- shooting a Micro- Turbine that Does Not Wake Up section. Failed IPM Power Supply IPM Power supply board lights are not illuminated when larger than 11.5 volts is being applied. Verify that the IPM boards have six LED’s illuminated. Replace the IPM Power Supply Ground Wiring Refer to the Installation documenta- tion for proper grounding configura- tion. Correct electrical wiring configuration Shorted Generator Cables Check to see if the generator cable is shorted to ground. Fix problem with the generator cables. Shorted Generator Remove the generator terminals in the Generator Junction Box. Measure resistance from each phase to Ground. It should be greater than 5k Ohms. Replace Engine. (Continued on next page) Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 3-7 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 2000 FAULT CODES Power Board Faults Capstone
