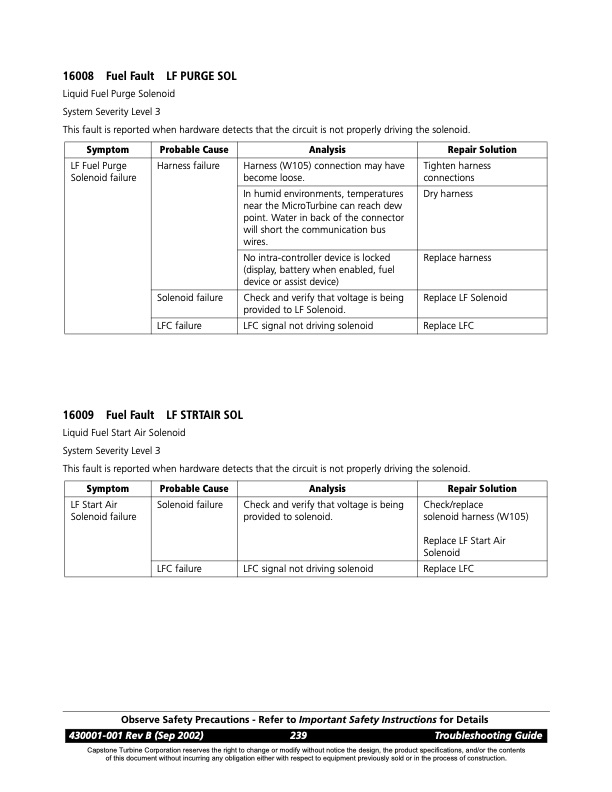

16008 Fuel Fault LF PURGE SOL Liquid Fuel Purge Solenoid System Severity Level 3 This fault is reported when hardware detects that the circuit is not properly driving the solenoid. Symptom Probable Cause Analysis Repair Solution LF Fuel Purge Solenoid failure Harness failure Harness (W105) connection may have become loose. Tighten harness connections In humid environments, temperatures near the MicroTurbine can reach dew point. Water in back of the connector will short the communication bus wires. Dry harness No intra-controller device is locked (display, battery when enabled, fuel device or assist device) Replace harness Solenoid failure Check and verify that voltage is being provided to LF Solenoid. Replace LF Solenoid LFC failure LFC signal not driving solenoid Replace LFC 16009 Fuel Fault LF STRTAIR SOL Liquid Fuel Start Air Solenoid System Severity Level 3 This fault is reported when hardware detects that the circuit is not properly driving the solenoid. Symptom Probable Cause Analysis Repair Solution LF Start Air Solenoid failure Solenoid failure Check and verify that voltage is being provided to solenoid. Check/replace solenoid harness (W105) Replace LF Start Air Solenoid LFC failure LFC signal not driving solenoid Replace LFC Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 239 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 16000 FAULT CODES Liquid
