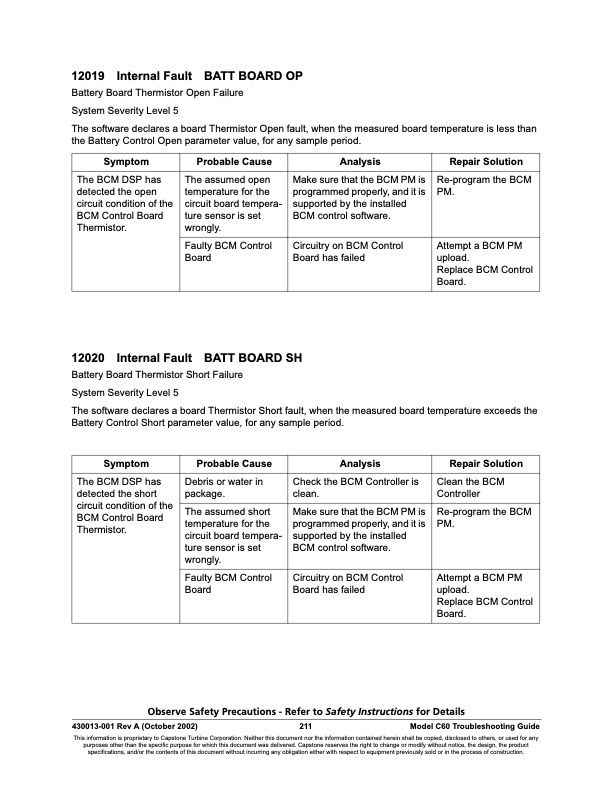

12019 Internal Fault BATT BOARD OP Battery Board Thermistor Open Failure System Severity Level 5 The software declares a board Thermistor Open fault, when the measured board temperature is less than the Battery Control Open parameter value, for any sample period. Symptom Probable Cause Analysis Repair Solution The BCM DSP has detected the open circuit condition of the BCM Control Board Thermistor. The assumed open temperature for the circuit board tempera- ture sensor is set wrongly. Make sure that the BCM PM is programmed properly, and it is supported by the installed BCM control software. Re-program the BCM PM. Faulty BCM Control Board Circuitry on BCM Control Board has failed Attempt a BCM PM upload. Replace BCM Control Board. 12020 Internal Fault BATT BOARD SH Battery Board Thermistor Short Failure System Severity Level 5 The software declares a board Thermistor Short fault, when the measured board temperature exceeds the Battery Control Short parameter value, for any sample period. Symptom Probable Cause Analysis Repair Solution The BCM DSP has detected the short circuit condition of the BCM Control Board Thermistor. Debris or water in package. Check the BCM Controller is clean. Clean the BCM Controller The assumed short temperature for the circuit board tempera- ture sensor is set wrongly. Make sure that the BCM PM is programmed properly, and it is supported by the installed BCM control software. Re-program the BCM PM. Faulty BCM Control Board Circuitry on BCM Control Board has failed Attempt a BCM PM upload. Replace BCM Control Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev A (October 2002) 211 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 12000 FAULT CODES Battery Device
