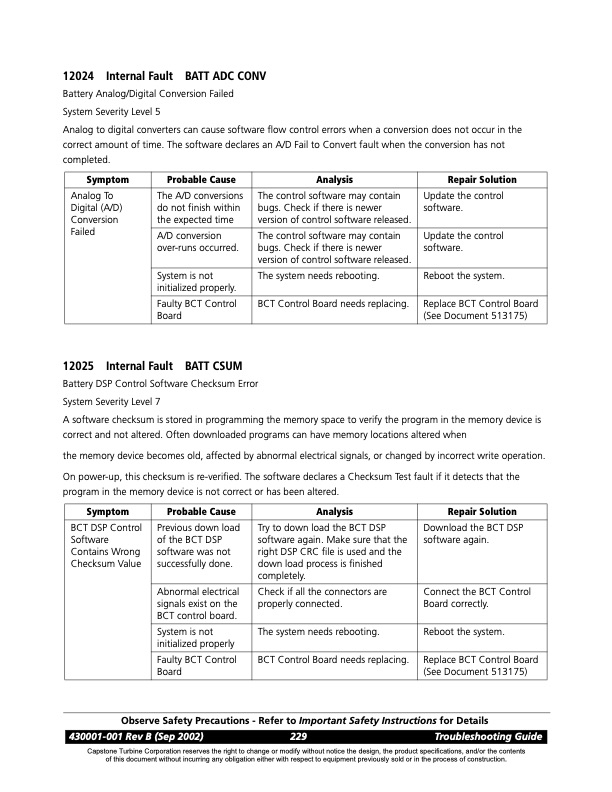

12024 Internal Fault BATT ADC CONV Battery Analog/Digital Conversion Failed System Severity Level 5 Analog to digital converters can cause software flow control errors when a conversion does not occur in the correct amount of time. The software declares an A/D Fail to Convert fault when the conversion has not completed. Symptom Probable Cause Analysis Repair Solution Analog To Digital (A/D) Conversion Failed The A/D conversions do not finish within the expected time The control software may contain bugs. Check if there is newer version of control software released. Update the control software. A/D conversion over-runs occurred. The control software may contain bugs. Check if there is newer version of control software released. Update the control software. System is not initialized properly. The system needs rebooting. Reboot the system. Faulty BCT Control Board BCT Control Board needs replacing. Replace BCT Control Board (See Document 513175) 12025 Internal Fault BATT CSUM Battery DSP Control Software Checksum Error System Severity Level 7 A software checksum is stored in programming the memory space to verify the program in the memory device is correct and not altered. Often downloaded programs can have memory locations altered when the memory device becomes old, affected by abnormal electrical signals, or changed by incorrect write operation. On power-up, this checksum is re-verified. The software declares a Checksum Test fault if it detects that the program in the memory device is not correct or has been altered. Symptom Probable Cause Analysis Repair Solution BCT DSP Control Software Contains Wrong Checksum Value Previous down load of the BCT DSP software was not successfully done. Try to down load the BCT DSP software again. Make sure that the right DSP CRC file is used and the down load process is finished completely. Download the BCT DSP software again. Abnormal electrical signals exist on the BCT control board. Check if all the connectors are properly connected. Connect the BCT Control Board correctly. System is not initialized properly The system needs rebooting. Reboot the system. Faulty BCT Control Board BCT Control Board needs replacing. Replace BCT Control Board (See Document 513175) Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 229 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 12000 FAULT CODES Battery
