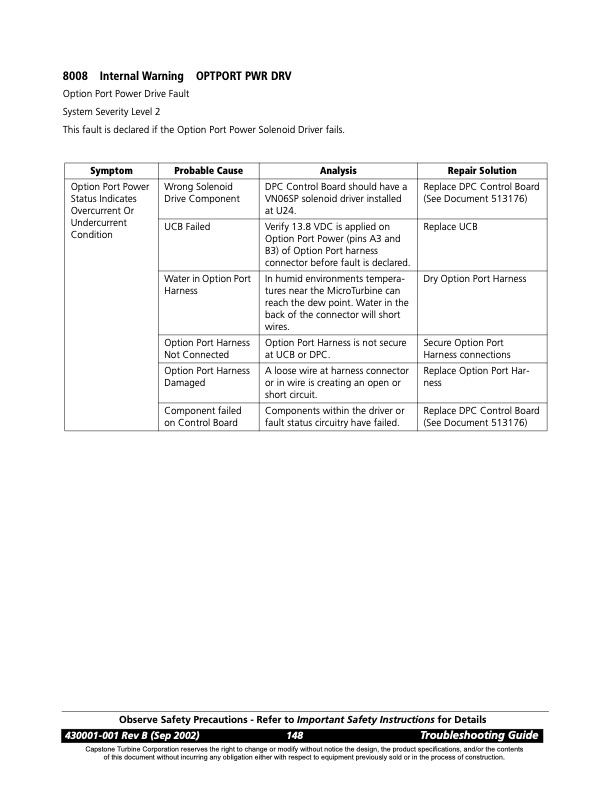

8008 Internal Warning OPTPORT PWR DRV Option Port Power Drive Fault System Severity Level 2 This fault is declared if the Option Port Power Solenoid Driver fails. Symptom Probable Cause Analysis Repair Solution Option Port Power Status Indicates Overcurrent Or Undercurrent Condition Wrong Solenoid Drive Component DPC Control Board should have a VN06SP solenoid driver installed at U24. Replace DPC Control Board (See Document 513176) UCB Failed Verify 13.8 VDC is applied on Option Port Power (pins A3 and B3) of Option Port harness connector before fault is declared. Replace UCB Water in Option Port Harness In humid environments tempera- tures near the MicroTurbine can reach the dew point. Water in the back of the connector will short wires. Dry Option Port Harness Option Port Harness Not Connected Option Port Harness is not secure at UCB or DPC. Secure Option Port Harness connections Option Port Harness Damaged A loose wire at harness connector or in wire is creating an open or short circuit. Replace Option Port Har- ness Component failed on Control Board Components within the driver or fault status circuitry have failed. Replace DPC Control Board (See Document 513176) Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 148 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 8000 FAULT CODES Solenoid Faults
