PDF Publication Title:
Text from PDF Page: 010

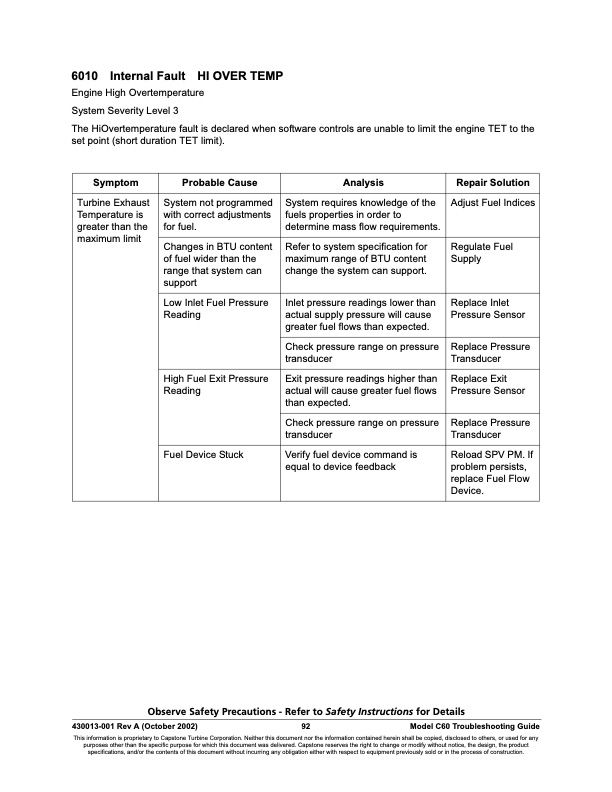

6010 Internal Fault HI OVER TEMP Engine High Overtemperature System Severity Level 3 The HiOvertemperature fault is declared when software controls are unable to limit the engine TET to the set point (short duration TET limit). Symptom Probable Cause Analysis Repair Solution Turbine Exhaust Temperature is greater than the maximum limit System not programmed with correct adjustments for fuel. System requires knowledge of the fuels properties in order to determine mass flow requirements. Adjust Fuel Indices Changes in BTU content of fuel wider than the range that system can support Refer to system specification for maximum range of BTU content change the system can support. Regulate Fuel Supply Low Inlet Fuel Pressure Reading Inlet pressure readings lower than actual supply pressure will cause greater fuel flows than expected. Replace Inlet Pressure Sensor Check pressure range on pressure transducer Replace Pressure Transducer High Fuel Exit Pressure Reading Exit pressure readings higher than actual will cause greater fuel flows than expected. Replace Exit Pressure Sensor Check pressure range on pressure transducer Replace Pressure Transducer Fuel Device Stuck Verify fuel device command is equal to device feedback Reload SPV PM. If problem persists, replace Fuel Flow Device. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev A (October 2002) 92 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 6000 FAULT CODES Operational Faults
PDF Search Title:
Overview SERIES 6000 FAULT CODES Operational FaultsOriginal File Name Searched:
11_430013_Series 6000.pdfDIY PDF Search: Google It | Yahoo | Bing
