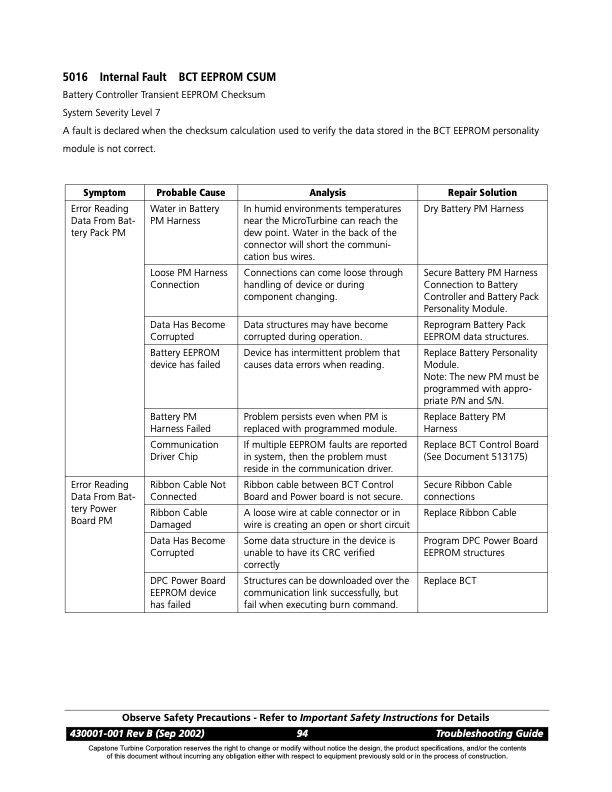

5016 Internal Fault BCT EEPROM CSUM Battery Controller Transient EEPROM Checksum System Severity Level 7 A fault is declared when the checksum calculation used to verify the data stored in the BCT EEPROM personality module is not correct. Symptom Probable Cause Analysis Repair Solution Error Reading Data From Bat- tery Pack PM Water in Battery PM Harness In humid environments temperatures near the MicroTurbine can reach the dew point. Water in the back of the connector will short the communi- cation bus wires. Dry Battery PM Harness Loose PM Harness Connection Connections can come loose through handling of device or during component changing. Secure Battery PM Harness Connection to Battery Controller and Battery Pack Personality Module. Data Has Become Corrupted Data structures may have become corrupted during operation. Reprogram Battery Pack EEPROM data structures. Battery EEPROM device has failed Device has intermittent problem that causes data errors when reading. Replace Battery Personality Module. Note: The new PM must be programmed with appro- priate P/N and S/N. Battery PM Harness Failed Problem persists even when PM is replaced with programmed module. Replace Battery PM Harness Communication Driver Chip If multiple EEPROM faults are reported in system, then the problem must reside in the communication driver. Replace BCT Control Board (See Document 513175) Error Reading Data From Bat- tery Power Board PM Ribbon Cable Not Connected Ribbon cable between BCT Control Board and Power board is not secure. Secure Ribbon Cable connections Ribbon Cable Damaged A loose wire at cable connector or in wire is creating an open or short circuit Replace Ribbon Cable Data Has Become Corrupted Some data structure in the device is unable to have its CRC verified correctly Program DPC Power Board EEPROM structures DPC Power Board EEPROM device has failed Structures can be downloaded over the communication link successfully, but fail when executing burn command. Replace BCT Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 94 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
