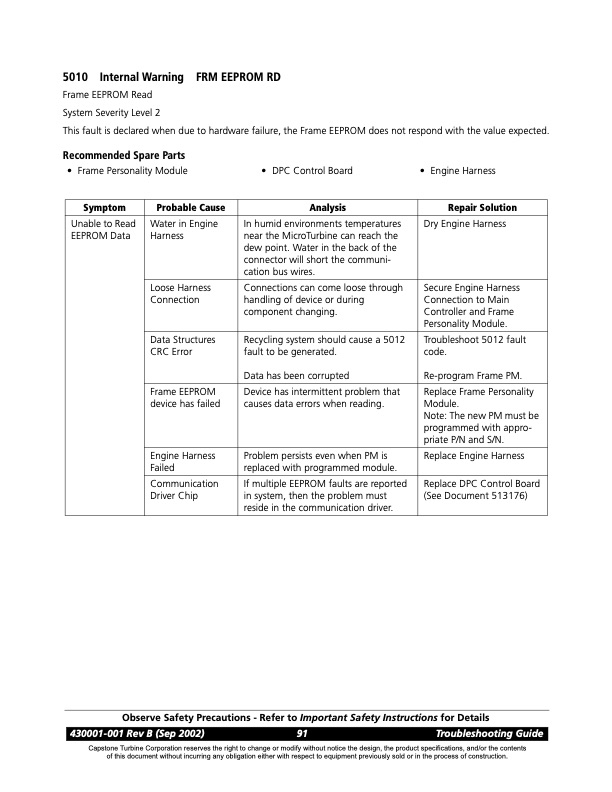

5010 Internal Warning FRM EEPROM RD Frame EEPROM Read System Severity Level 2 This fault is declared when due to hardware failure, the Frame EEPROM does not respond with the value expected. Recommended Spare Parts • Frame Personality Module • DPC Control Board • Engine Harness Symptom Probable Cause Analysis Repair Solution Unable to Read EEPROM Data Water in Engine Harness In humid environments temperatures near the MicroTurbine can reach the dew point. Water in the back of the connector will short the communi- cation bus wires. Dry Engine Harness Loose Harness Connection Connections can come loose through handling of device or during component changing. Secure Engine Harness Connection to Main Controller and Frame Personality Module. Data Structures CRC Error Recycling system should cause a 5012 fault to be generated. Data has been corrupted Troubleshoot 5012 fault code. Re-program Frame PM. Frame EEPROM device has failed Device has intermittent problem that causes data errors when reading. Replace Frame Personality Module. Note: The new PM must be programmed with appro- priate P/N and S/N. Engine Harness Failed Problem persists even when PM is replaced with programmed module. Replace Engine Harness Communication Driver Chip If multiple EEPROM faults are reported in system, then the problem must reside in the communication driver. Replace DPC Control Board (See Document 513176) Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 91 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
