Text from PDF Page: 018

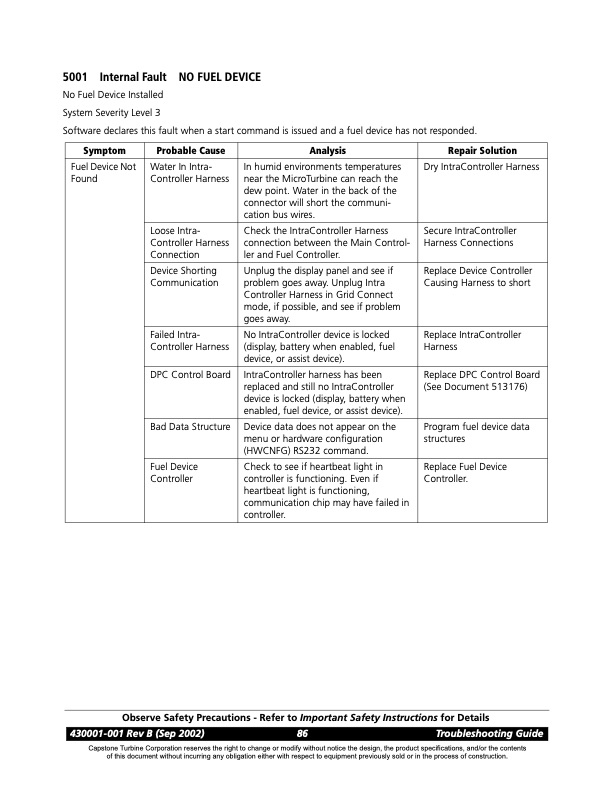

5001 Internal Fault NO FUEL DEVICE No Fuel Device Installed System Severity Level 3 Software declares this fault when a start command is issued and a fuel device has not responded. Symptom Probable Cause Analysis Repair Solution Fuel Device Not Found Water In Intra- Controller Harness In humid environments temperatures near the MicroTurbine can reach the dew point. Water in the back of the connector will short the communi- cation bus wires. Dry IntraController Harness Loose Intra- Controller Harness Connection Check the IntraController Harness connection between the Main Control- ler and Fuel Controller. Secure IntraController Harness Connections Device Shorting Communication Unplug the display panel and see if problem goes away. Unplug Intra Controller Harness in Grid Connect mode, if possible, and see if problem goes away. Replace Device Controller Causing Harness to short Failed Intra- Controller Harness No IntraController device is locked (display, battery when enabled, fuel device, or assist device). Replace IntraController Harness DPC Control Board IntraController harness has been replaced and still no IntraController device is locked (display, battery when enabled, fuel device, or assist device). Replace DPC Control Board (See Document 513176) Bad Data Structure Device data does not appear on the menu or hardware configuration (HWCNFG) RS232 command. Program fuel device data structures Fuel Device Controller Check to see if heartbeat light in controller is functioning. Even if heartbeat light is functioning, communication chip may have failed in controller. Replace Fuel Device Controller. Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 86 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
