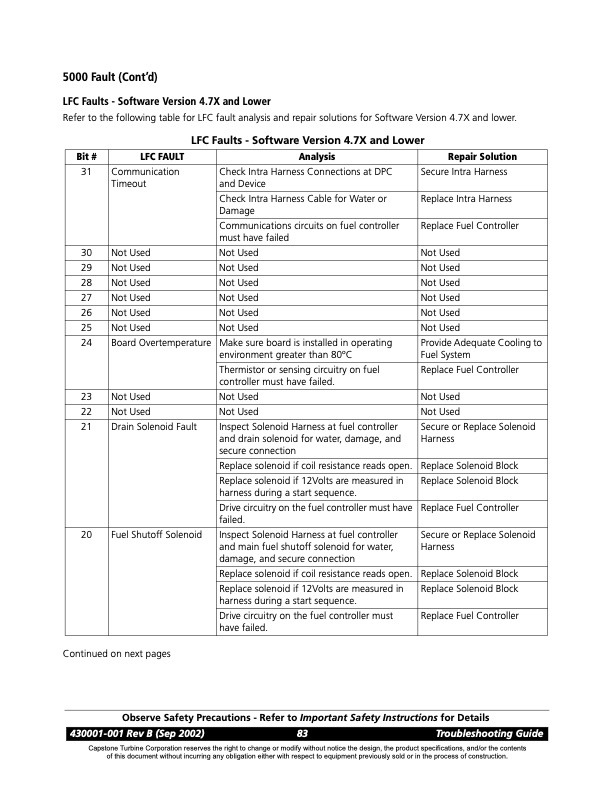

5000 Fault (Cont’d) LFC Faults - Software Version 4.7X and Lower Refer to the following table for LFC fault analysis and repair solutions for Software Version 4.7X and lower. LFC Faults - Software Version 4.7X and Lower Bit # LFC FAULT Analysis Repair Solution 31 Communication Timeout Check Intra Harness Connections at DPC and Device Secure Intra Harness Check Intra Harness Cable for Water or Damage Replace Intra Harness Communications circuits on fuel controller must have failed Replace Fuel Controller 30 Not Used Not Used Not Used 29 Not Used Not Used Not Used 28 Not Used Not Used Not Used 27 Not Used Not Used Not Used 26 Not Used Not Used Not Used 25 Not Used Not Used Not Used 24 Board Overtemperature Make sure board is installed in operating environment greater than 80oC Provide Adequate Cooling to Fuel System Thermistor or sensing circuitry on fuel controller must have failed. Replace Fuel Controller 23 Not Used Not Used Not Used 22 Not Used Not Used Not Used 21 Drain Solenoid Fault Inspect Solenoid Harness at fuel controller and drain solenoid for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have failed. Replace Fuel Controller 20 Fuel Shutoff Solenoid Inspect Solenoid Harness at fuel controller and main fuel shutoff solenoid for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have failed. Replace Fuel Controller Continued on next pages Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 83 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
