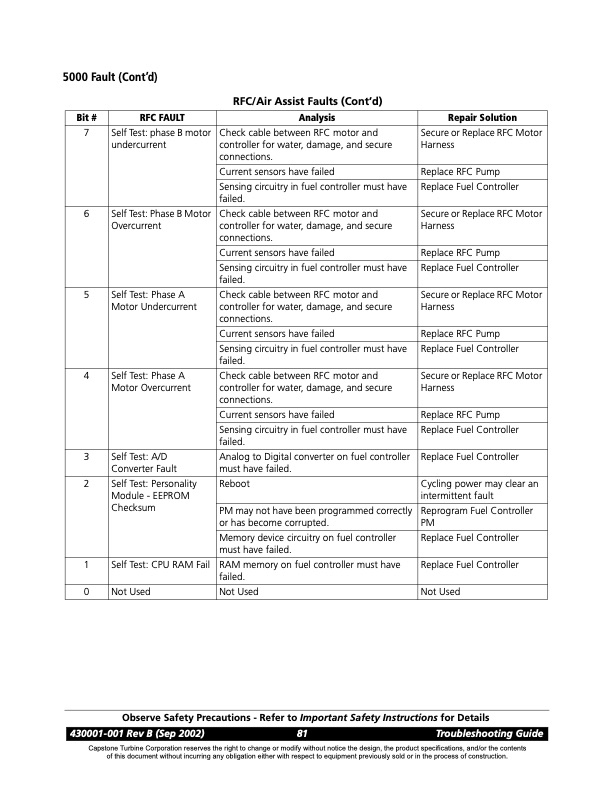

5000 Fault (Cont’d) RFC/Air Assist Faults (Cont’d) Bit # RFC FAULT Analysis Repair Solution 7 Self Test: phase B motor undercurrent Check cable between RFC motor and controller for water, damage, and secure connections. Secure or Replace RFC Motor Harness Current sensors have failed Replace RFC Pump Sensing circuitry in fuel controller must have failed. Replace Fuel Controller 6 Self Test: Phase B Motor Overcurrent Check cable between RFC motor and controller for water, damage, and secure connections. Secure or Replace RFC Motor Harness Current sensors have failed Replace RFC Pump Sensing circuitry in fuel controller must have failed. Replace Fuel Controller 5 Self Test: Phase A Motor Undercurrent Check cable between RFC motor and controller for water, damage, and secure connections. Secure or Replace RFC Motor Harness Current sensors have failed Replace RFC Pump Sensing circuitry in fuel controller must have failed. Replace Fuel Controller 4 Self Test: Phase A Motor Overcurrent Check cable between RFC motor and controller for water, damage, and secure connections. Secure or Replace RFC Motor Harness Current sensors have failed Replace RFC Pump Sensing circuitry in fuel controller must have failed. Replace Fuel Controller 3 Self Test: A/D Converter Fault Analog to Digital converter on fuel controller must have failed. Replace Fuel Controller 2 Self Test: Personality Module - EEPROM Checksum Reboot Cycling power may clear an intermittent fault PM may not have been programmed correctly or has become corrupted. Reprogram Fuel Controller PM Memory device circuitry on fuel controller must have failed. Replace Fuel Controller 1 Self Test: CPU RAM Fail RAM memory on fuel controller must have failed. Replace Fuel Controller 0 Not Used Not Used Not Used Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 81 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
