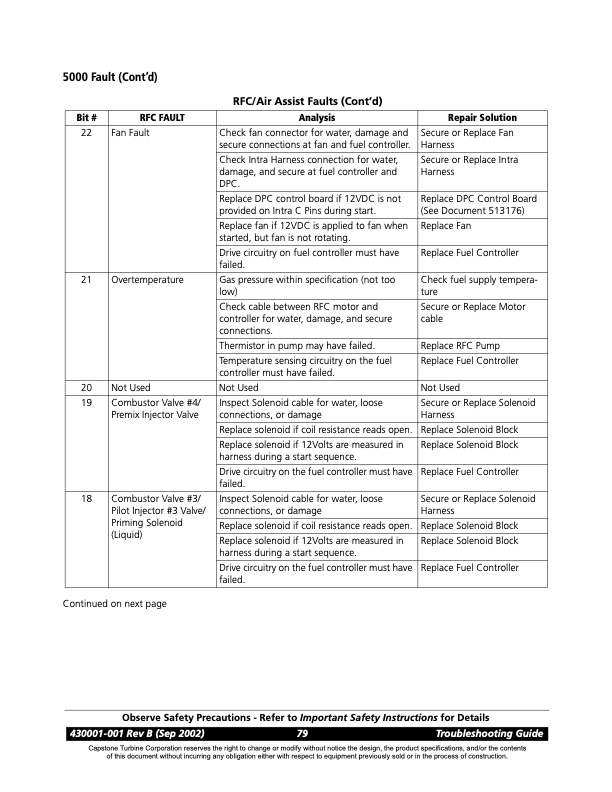

5000 Fault (Cont’d) RFC/Air Assist Faults (Cont’d) Bit # RFC FAULT Analysis Repair Solution 22 Fan Fault Check fan connector for water, damage and secure connections at fan and fuel controller. Secure or Replace Fan Harness Check Intra Harness connection for water, damage, and secure at fuel controller and DPC. Secure or Replace Intra Harness Replace DPC control board if 12VDC is not provided on Intra C Pins during start. Replace DPC Control Board (See Document 513176) Replace fan if 12VDC is applied to fan when started, but fan is not rotating. Replace Fan Drive circuitry on fuel controller must have failed. Replace Fuel Controller 21 Overtemperature Gas pressure within specification (not too low) Check fuel supply tempera- ture Check cable between RFC motor and controller for water, damage, and secure connections. Secure or Replace Motor cable Thermistor in pump may have failed. Replace RFC Pump Temperature sensing circuitry on the fuel controller must have failed. Replace Fuel Controller 20 Not Used Not Used Not Used 19 Combustor Valve #4/ Premix Injector Valve Inspect Solenoid cable for water, loose connections, or damage Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have failed. Replace Fuel Controller 18 Combustor Valve #3/ Pilot Injector #3 Valve/ Priming Solenoid (Liquid) Inspect Solenoid cable for water, loose connections, or damage Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have failed. Replace Fuel Controller Continued on next page Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 79 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
