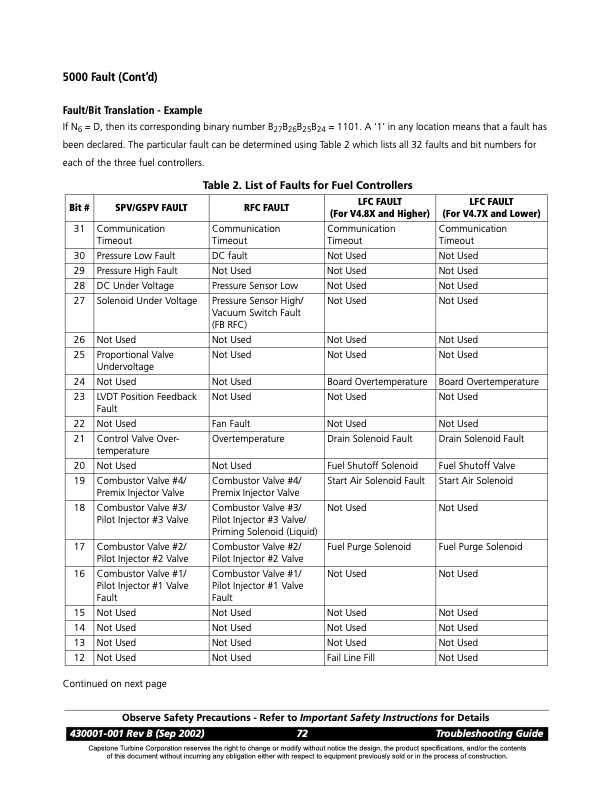

5000 Fault (Cont’d) Fault/Bit Translation - Example If N6 = D, then its corresponding binary number B27B26B25B24 = 1101. A ‘1’ in any location means that a fault has been declared. The particular fault can be determined using Table 2 which lists all 32 faults and bit numbers for each of the three fuel controllers. Table 2. List of Faults for Fuel Controllers Bit # SPV/GSPV FAULT RFC FAULT LFC FAULT (For V4.8X and Higher) LFC FAULT (For V4.7X and Lower) 31 Communication Timeout Communication Timeout Communication Timeout Communication Timeout 30 Pressure Low Fault DC fault Not Used Not Used 29 Pressure High Fault Not Used Not Used Not Used 28 DC Under Voltage Pressure Sensor Low Not Used Not Used 27 Solenoid Under Voltage Pressure Sensor High/ Vacuum Switch Fault (FB RFC) Not Used Not Used 26 Not Used Not Used Not Used Not Used 25 Proportional Valve Undervoltage Not Used Not Used Not Used 24 Not Used Not Used Board Overtemperature Board Overtemperature 23 LVDT Position Feedback Fault Not Used Not Used Not Used 22 Not Used Fan Fault Not Used Not Used 21 Control Valve Over- temperature Overtemperature Drain Solenoid Fault Drain Solenoid Fault 20 Not Used Not Used Fuel Shutoff Solenoid Fuel Shutoff Valve 19 Combustor Valve #4/ Premix Injector Valve Combustor Valve #4/ Premix Injector Valve Start Air Solenoid Fault Start Air Solenoid 18 Combustor Valve #3/ Pilot Injector #3 Valve Combustor Valve #3/ Pilot Injector #3 Valve/ Priming Solenoid (Liquid) Not Used Not Used 17 Combustor Valve #2/ Pilot Injector #2 Valve Combustor Valve #2/ Pilot Injector #2 Valve Fuel Purge Solenoid Fuel Purge Solenoid 16 Combustor Valve #1/ Pilot Injector #1 Valve Fault Combustor Valve #1/ Pilot Injector #1 Valve Fault Not Used Not Used 15 Not Used Not Used Not Used Not Used 14 Not Used Not Used Not Used Not Used 13 Not Used Not Used Not Used Not Used 12 Not Used Not Used Fail Line Fill Not Used Continued on next page Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 72 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
PDF Search Title:
Overview SERIES 5000 FAULT CODES Package FaultsOriginal File Name Searched:
10_430001 Series 5000.pdfDIY PDF Search: Google It | Yahoo | Bing
