Text from PDF Page: 017

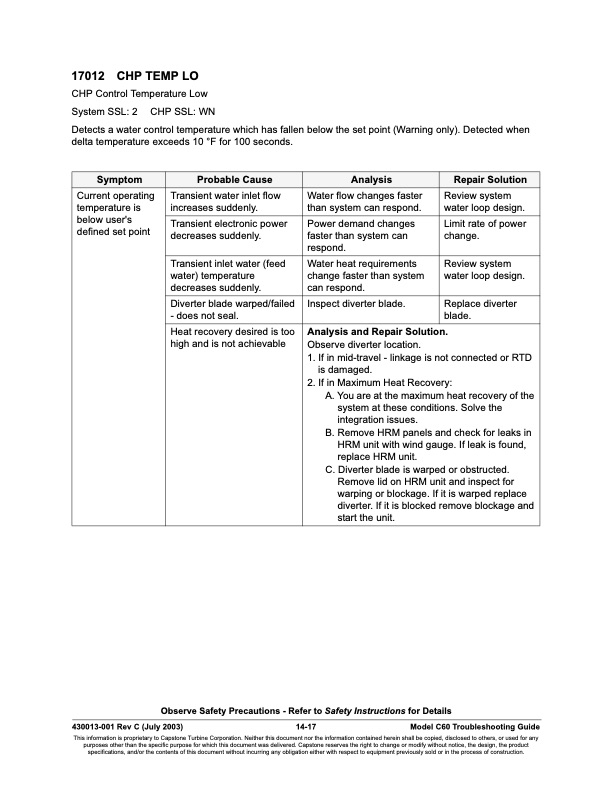

17012 CHP TEMP LO CHP Control Temperature Low System SSL: 2 CHP SSL: WN Detects a water control temperature which has fallen below the set point (Warning only). Detected when delta temperature exceeds 10 °F for 100 seconds. Symptom Probable Cause Analysis Repair Solution Current operating temperature is below user's defined set point Transient water inlet flow increases suddenly. Water flow changes faster than system can respond. Review system water loop design. Transient electronic power decreases suddenly. Power demand changes faster than system can respond. Limit rate of power change. Transient inlet water (feed water) temperature decreases suddenly. Water heat requirements change faster than system can respond. Review system water loop design. Diverter blade warped/failed - does not seal. Inspect diverter blade. Replace diverter blade. Heat recovery desired is too high and is not achievable Analysis and Repair Solution. Observe diverter location. 1. If in mid-travel - linkage is not connected or RTD is damaged. 2. If in Maximum Heat Recovery: A. You are at the maximum heat recovery of the system at these conditions. Solve the integration issues. B. Remove HRM panels and check for leaks in HRM unit with wind gauge. If leak is found, replace HRM unit. C. Diverter blade is warped or obstructed. Remove lid on HRM unit and inspect for warping or blockage. If it is warped replace diverter. If it is blocked remove blockage and start the unit. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 14-17 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 17000 FAULT CODES Integrated CHP Faults
