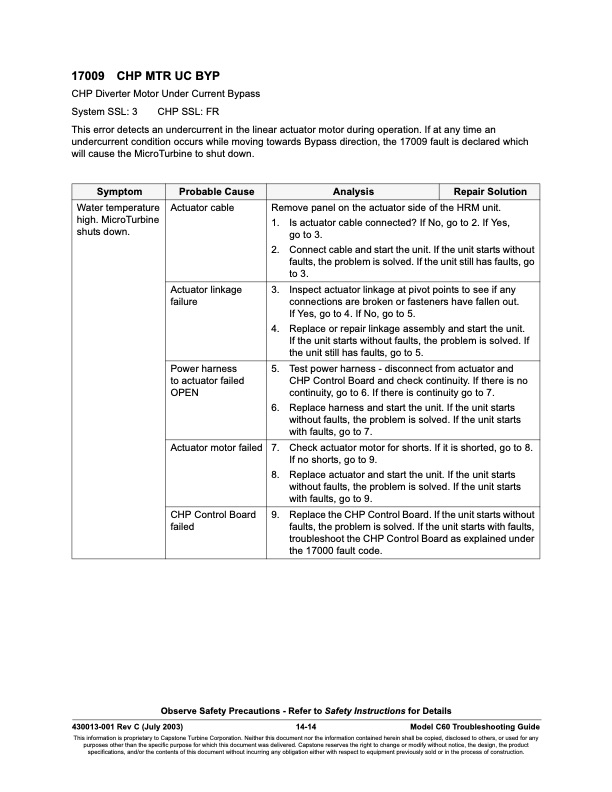

17009 CHP MTR UC BYP CHP Diverter Motor Under Current Bypass System SSL: 3 CHP SSL: FR This error detects an undercurrent in the linear actuator motor during operation. If at any time an undercurrent condition occurs while moving towards Bypass direction, the 17009 fault is declared which will cause the MicroTurbine to shut down. Symptom Probable Cause Analysis Repair Solution Water temperature high. MicroTurbine shuts down. Actuator cable Remove panel on the actuator side of the HRM unit. 1. Is actuator cable connected? If No, go to 2. If Yes, go to 3. 2. Connect cable and start the unit. If the unit starts without faults, the problem is solved. If the unit still has faults, go to 3. Actuator linkage failure 3. Inspect actuator linkage at pivot points to see if any connections are broken or fasteners have fallen out. If Yes, go to 4. If No, go to 5. 4. Replace or repair linkage assembly and start the unit. If the unit starts without faults, the problem is solved. If the unit still has faults, go to 5. Power harness to actuator failed OPEN 5. Test power harness - disconnect from actuator and CHP Control Board and check continuity. If there is no continuity, go to 6. If there is continuity go to 7. 6. Replace harness and start the unit. If the unit starts without faults, the problem is solved. If the unit starts with faults, go to 7. Actuator motor failed 7. Check actuator motor for shorts. If it is shorted, go to 8. If no shorts, go to 9. 8. Replace actuator and start the unit. If the unit starts without faults, the problem is solved. If the unit starts with faults, go to 9. CHP Control Board failed 9. Replace the CHP Control Board. If the unit starts without faults, the problem is solved. If the unit starts with faults, troubleshoot the CHP Control Board as explained under the 17000 fault code. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 14-14 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 17000 FAULT CODES Integrated CHP Faults
