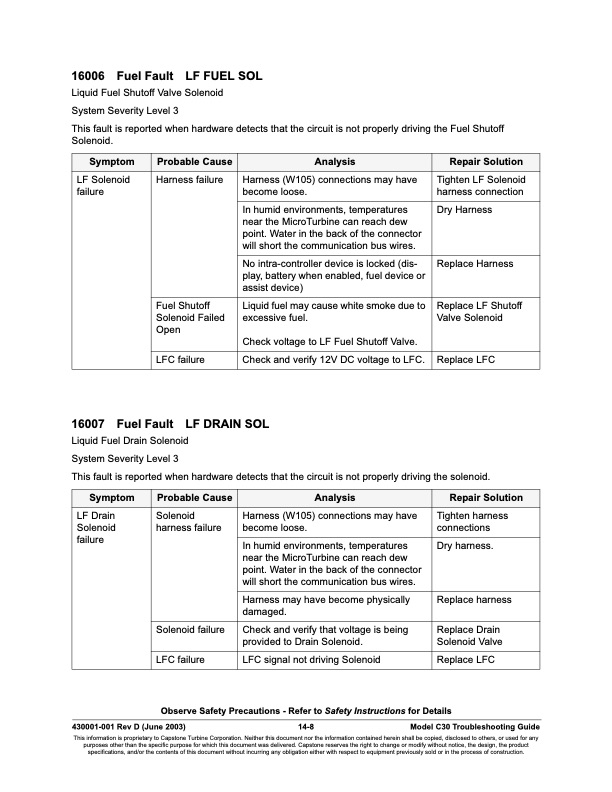

16006 Fuel Fault LF FUEL SOL Liquid Fuel Shutoff Valve Solenoid System Severity Level 3 This fault is reported when hardware detects that the circuit is not properly driving the Fuel Shutoff Solenoid. Symptom Probable Cause Analysis Repair Solution LF Solenoid failure Harness failure Harness (W105) connections may have become loose. Tighten LF Solenoid harness connection In humid environments, temperatures near the MicroTurbine can reach dew point. Water in the back of the connector will short the communication bus wires. Dry Harness No intra-controller device is locked (dis- play, battery when enabled, fuel device or assist device) Replace Harness Fuel Shutoff Solenoid Failed Open Liquid fuel may cause white smoke due to excessive fuel. Check voltage to LF Fuel Shutoff Valve. Replace LF Shutoff Valve Solenoid LFC failure Check and verify 12V DC voltage to LFC. Replace LFC 16007 Fuel Fault LF DRAIN SOL Liquid Fuel Drain Solenoid System Severity Level 3 This fault is reported when hardware detects that the circuit is not properly driving the solenoid. Symptom Probable Cause Analysis Repair Solution LF Drain Solenoid failure Solenoid harness failure Harness (W105) connections may have become loose. Tighten harness connections In humid environments, temperatures near the MicroTurbine can reach dew point. Water in the back of the connector will short the communication bus wires. Dry harness. Harness may have become physically damaged. Replace harness Solenoid failure Check and verify that voltage is being provided to Drain Solenoid. Replace Drain Solenoid Valve LFC failure LFC signal not driving Solenoid Replace LFC Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 14-8 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 16000 FAULT CODES Liquid Fuel Controller Faults
