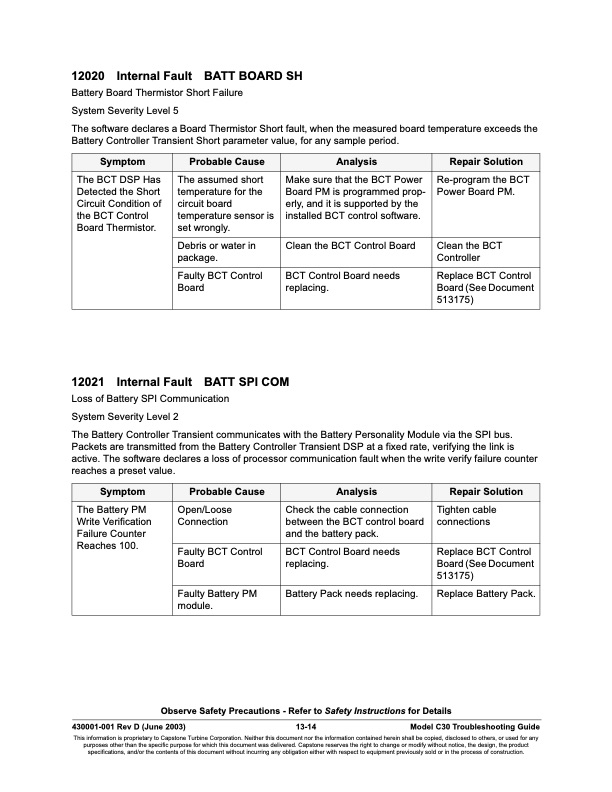

12020 Internal Fault BATT BOARD SH Battery Board Thermistor Short Failure System Severity Level 5 The software declares a Board Thermistor Short fault, when the measured board temperature exceeds the Battery Controller Transient Short parameter value, for any sample period. Symptom Probable Cause Analysis Repair Solution The BCT DSP Has Detected the Short Circuit Condition of the BCT Control Board Thermistor. The assumed short temperature for the circuit board temperature sensor is set wrongly. Make sure that the BCT Power Board PM is programmed prop- erly, and it is supported by the installed BCT control software. Re-program the BCT Power Board PM. Debris or water in package. Clean the BCT Control Board Clean the BCT Controller Faulty BCT Control Board BCT Control Board needs replacing. Replace BCT Control Board (See Document 513175) 12021 Internal Fault BATT SPI COM Loss of Battery SPI Communication System Severity Level 2 The Battery Controller Transient communicates with the Battery Personality Module via the SPI bus. Packets are transmitted from the Battery Controller Transient DSP at a fixed rate, verifying the link is active. The software declares a loss of processor communication fault when the write verify failure counter reaches a preset value. Symptom Probable Cause Analysis Repair Solution The Battery PM Write Verification Failure Counter Reaches 100. Open/Loose Connection Check the cable connection between the BCT control board and the battery pack. Tighten cable connections Faulty BCT Control Board BCT Control Board needs replacing. Replace BCT Control Board (See Document 513175) Faulty Battery PM module. Battery Pack needs replacing. Replace Battery Pack. Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 13-14 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 12000 FAULT CODES Battery Device Faults
PDF Search Title:
Overview SERIES 12000 FAULT CODES Battery Device FaultsOriginal File Name Searched:
