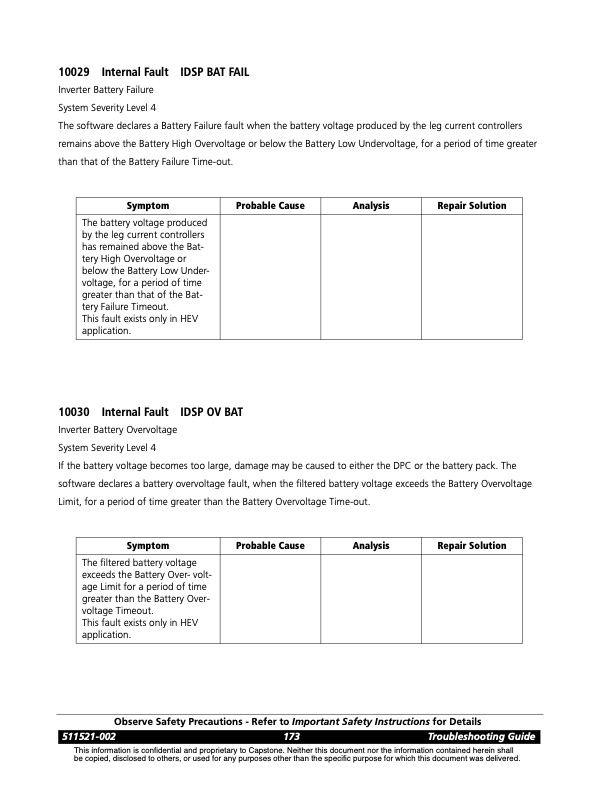

10029 Internal Fault IDSP BAT FAIL Inverter Battery Failure System Severity Level 4 The software declares a Battery Failure fault when the battery voltage produced by the leg current controllers remains above the Battery High Overvoltage or below the Battery Low Undervoltage, for a period of time greater than that of the Battery Failure Time-out. Symptom Probable Cause Analysis Repair Solution The battery voltage produced by the leg current controllers has remained above the Bat- tery High Overvoltage or below the Battery Low Under- voltage, for a period of time greater than that of the Bat- tery Failure Timeout. This fault exists only in HEV application. 10030 Internal Fault IDSP OV BAT Inverter Battery Overvoltage System Severity Level 4 If the battery voltage becomes too large, damage may be caused to either the DPC or the battery pack. The software declares a battery overvoltage fault, when the filtered battery voltage exceeds the Battery Overvoltage Limit, for a period of time greater than the Battery Overvoltage Time-out. Symptom Probable Cause Analysis Repair Solution The filtered battery voltage exceeds the Battery Over- volt- age Limit for a period of time greater than the Battery Over- voltage Timeout. This fault exists only in HEV application. Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 173 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
