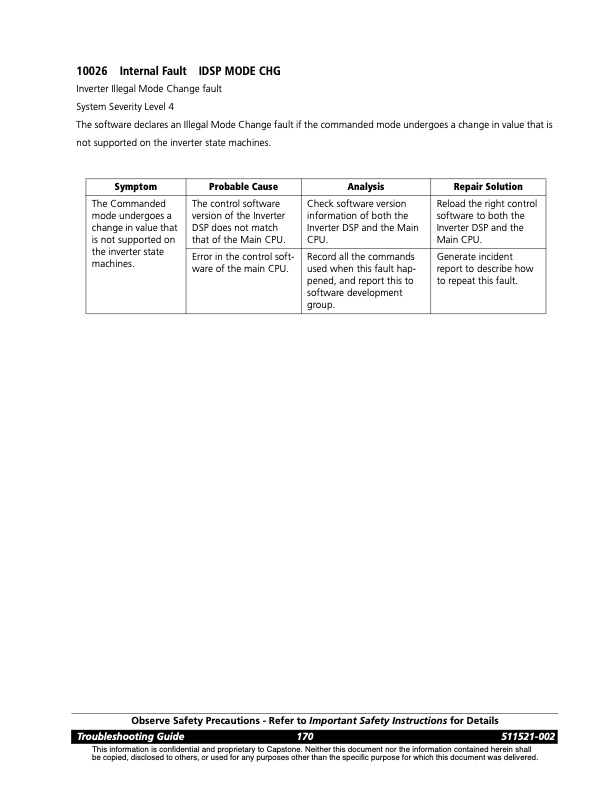

10026 Internal Fault IDSP MODE CHG Inverter Illegal Mode Change fault System Severity Level 4 The software declares an Illegal Mode Change fault if the commanded mode undergoes a change in value that is not supported on the inverter state machines. Symptom Probable Cause Analysis Repair Solution The Commanded mode undergoes a change in value that is not supported on the inverter state machines. The control software version of the Inverter DSP does not match that of the Main CPU. Check software version information of both the Inverter DSP and the Main CPU. Reload the right control software to both the Inverter DSP and the Main CPU. Error in the control soft- ware of the main CPU. Record all the commands used when this fault hap- pened, and report this to software development group. Generate incident report to describe how to repeat this fault. Observe Safety Precautions - Refer to Important Safety Instructions for Details Troubleshooting Guide 170 511521-002 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
