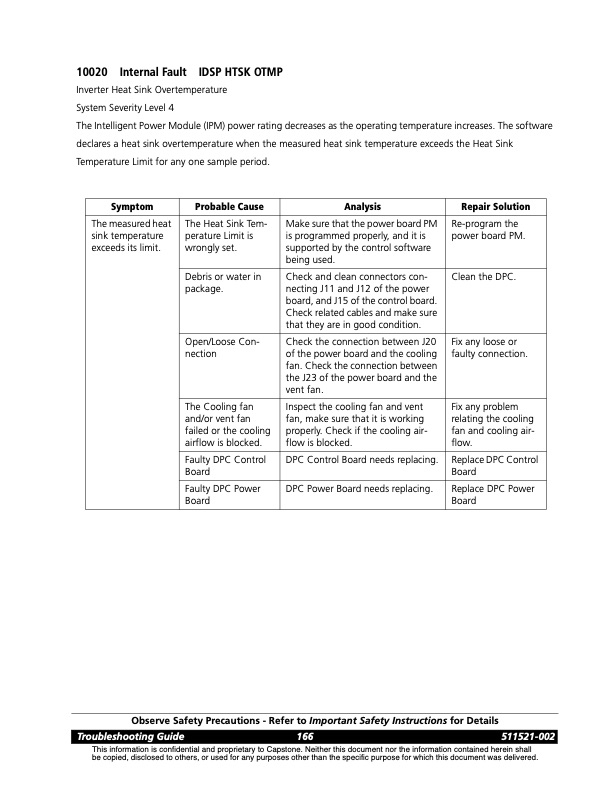

10020 Internal Fault IDSP HTSK OTMP Inverter Heat Sink Overtemperature System Severity Level 4 The Intelligent Power Module (IPM) power rating decreases as the operating temperature increases. The software declares a heat sink overtemperature when the measured heat sink temperature exceeds the Heat Sink Temperature Limit for any one sample period. Symptom Probable Cause Analysis Repair Solution The measured heat sink temperature exceeds its limit. The Heat Sink Tem- perature Limit is wrongly set. Make sure that the power board PM is programmed properly, and it is supported by the control software being used. Re-program the power board PM. Debris or water in package. Check and clean connectors con- necting J11 and J12 of the power board, and J15 of the control board. Check related cables and make sure that they are in good condition. Clean the DPC. Open/Loose Con- nection Check the connection between J20 of the power board and the cooling fan. Check the connection between the J23 of the power board and the vent fan. Fix any loose or faulty connection. The Cooling fan and/or vent fan failed or the cooling airflow is blocked. Inspect the cooling fan and vent fan, make sure that it is working properly. Check if the cooling air- flow is blocked. Fix any problem relating the cooling fan and cooling air- flow. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board Observe Safety Precautions - Refer to Important Safety Instructions for Details Troubleshooting Guide 166 511521-002 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
