PDF Publication Title:
Text from PDF Page: 007

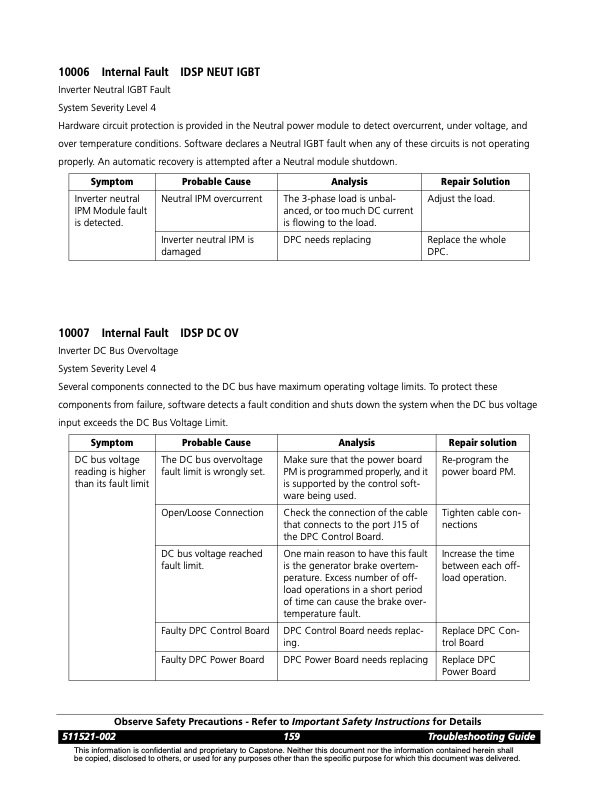

10006 Internal Fault IDSP NEUT IGBT Inverter Neutral IGBT Fault System Severity Level 4 Hardware circuit protection is provided in the Neutral power module to detect overcurrent, under voltage, and over temperature conditions. Software declares a Neutral IGBT fault when any of these circuits is not operating properly. An automatic recovery is attempted after a Neutral module shutdown. Symptom Probable Cause Analysis Repair Solution Inverter neutral IPM Module fault is detected. Neutral IPM overcurrent The 3-phase load is unbal- anced, or too much DC current is flowing to the load. Adjust the load. Inverter neutral IPM is damaged DPC needs replacing Replace the whole DPC. 10007 Internal Fault IDSP DC OV Inverter DC Bus Overvoltage System Severity Level 4 Several components connected to the DC bus have maximum operating voltage limits. To protect these components from failure, software detects a fault condition and shuts down the system when the DC bus voltage input exceeds the DC Bus Voltage Limit. Symptom Probable Cause Analysis Repair solution DC bus voltage reading is higher than its fault limit The DC bus overvoltage fault limit is wrongly set. Make sure that the power board PM is programmed properly, and it is supported by the control soft- ware being used. Re-program the power board PM. Open/Loose Connection Check the connection of the cable that connects to the port J15 of the DPC Control Board. Tighten cable con- nections DC bus voltage reached fault limit. One main reason to have this fault is the generator brake overtem- perature. Excess number of off- load operations in a short period of time can cause the brake over- temperature fault. Increase the time between each off- load operation. Faulty DPC Control Board DPC Control Board needs replac- ing. Replace DPC Con- trol Board Faulty DPC Power Board DPC Power Board needs replacing Replace DPC Power Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 159 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
PDF Search Title:
Overview SERIES 10000 FAULT CODES Inverter FaultsOriginal File Name Searched:
10_10000Faults.pdfDIY PDF Search: Google It | Yahoo | Bing
