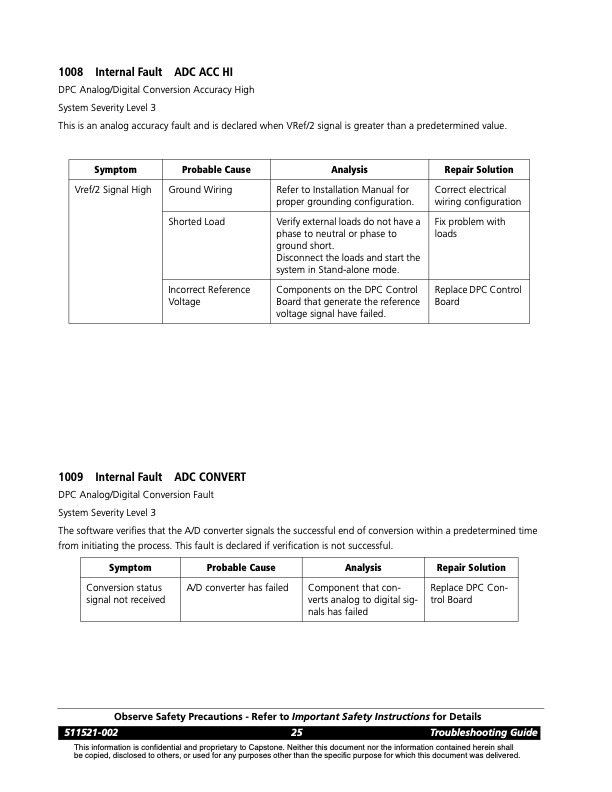

1008 Internal Fault ADC ACC HI DPC Analog/Digital Conversion Accuracy High System Severity Level 3 This is an analog accuracy fault and is declared when VRef/2 signal is greater than a predetermined value. Symptom Probable Cause Analysis Repair Solution Vref/2 Signal High Ground Wiring Refer to Installation Manual for proper grounding configuration. Correct electrical wiring configuration Shorted Load Verify external loads do not have a phase to neutral or phase to ground short. Disconnect the loads and start the system in Stand-alone mode. Fix problem with loads Incorrect Reference Voltage Components on the DPC Control Board that generate the reference voltage signal have failed. Replace DPC Control Board 1009 Internal Fault ADC CONVERT DPC Analog/Digital Conversion Fault System Severity Level 3 The software verifies that the A/D converter signals the successful end of conversion within a predetermined time from initiating the process. This fault is declared if verification is not successful. Symptom Probable Cause Analysis Repair Solution Conversion status signal not received A/D converter has failed Component that con- verts analog to digital sig- nals has failed Replace DPC Con- trol Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 25 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Control Board FaultsSERIES 1000 FAULT CODES
