PDF Publication Title:
Text from PDF Page: 003

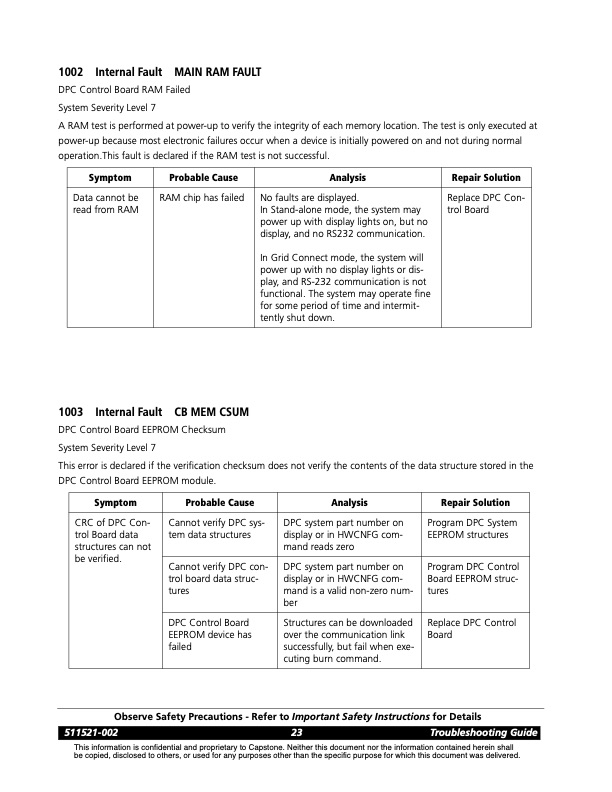

1002 Internal Fault MAIN RAM FAULT DPC Control Board RAM Failed System Severity Level 7 A RAM test is performed at power-up to verify the integrity of each memory location. The test is only executed at power-up because most electronic failures occur when a device is initially powered on and not during normal operation.This fault is declared if the RAM test is not successful. Symptom Probable Cause Analysis Repair Solution Data cannot be read from RAM RAM chip has failed No faults are displayed. In Stand-alone mode, the system may power up with display lights on, but no display, and no RS232 communication. In Grid Connect mode, the system will power up with no display lights or dis- play, and RS-232 communication is not functional. The system may operate fine for some period of time and intermit- tently shut down. Replace DPC Con- trol Board 1003 Internal Fault CB MEM CSUM DPC Control Board EEPROM Checksum System Severity Level 7 This error is declared if the verification checksum does not verify the contents of the data structure stored in the DPC Control Board EEPROM module. Symptom Probable Cause Analysis Repair Solution CRC of DPC Con- trol Board data structures can not be verified. Cannot verify DPC sys- tem data structures DPC system part number on display or in HWCNFG com- mand reads zero Program DPC System EEPROM structures Cannot verify DPC con- trol board data struc- tures DPC system part number on display or in HWCNFG com- mand is a valid non-zero num- ber Program DPC Control Board EEPROM struc- tures DPC Control Board EEPROM device has failed Structures can be downloaded over the communication link successfully, but fail when exe- cuting burn command. Replace DPC Control Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 23 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Control Board FaultsSERIES 1000 FAULT CODES
