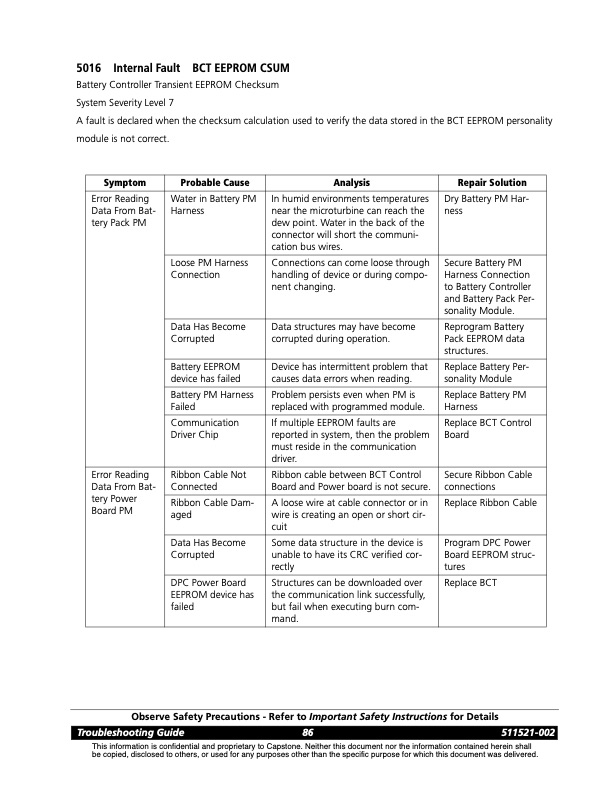

5016 Internal Fault BCT EEPROM CSUM Battery Controller Transient EEPROM Checksum System Severity Level 7 A fault is declared when the checksum calculation used to verify the data stored in the BCT EEPROM personality module is not correct. Symptom Probable Cause Analysis Repair Solution Error Reading Data From Bat- tery Pack PM Water in Battery PM Harness In humid environments temperatures near the microturbine can reach the dew point. Water in the back of the connector will short the communi- cation bus wires. Dry Battery PM Har- ness Loose PM Harness Connection Connections can come loose through handling of device or during compo- nent changing. Secure Battery PM Harness Connection to Battery Controller and Battery Pack Per- sonality Module. Data Has Become Corrupted Data structures may have become corrupted during operation. Reprogram Battery Pack EEPROM data structures. Battery EEPROM device has failed Device has intermittent problem that causes data errors when reading. Replace Battery Per- sonality Module Battery PM Harness Failed Problem persists even when PM is replaced with programmed module. Replace Battery PM Harness Communication Driver Chip If multiple EEPROM faults are reported in system, then the problem must reside in the communication driver. Replace BCT Control Board Error Reading Data From Bat- tery Power Board PM Ribbon Cable Not Connected Ribbon cable between BCT Control Board and Power board is not secure. Secure Ribbon Cable connections Ribbon Cable Dam- aged A loose wire at cable connector or in wire is creating an open or short cir- cuit Replace Ribbon Cable Data Has Become Corrupted Some data structure in the device is unable to have its CRC verified cor- rectly Program DPC Power Board EEPROM struc- tures DPC Power Board EEPROM device has failed Structures can be downloaded over the communication link successfully, but fail when executing burn com- mand. Replace BCT Observe Safety Precautions - Refer to Important Safety Instructions for Details Troubleshooting Guide 86 511521-002 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Capstone SERIES 5000 FAULT CODES
