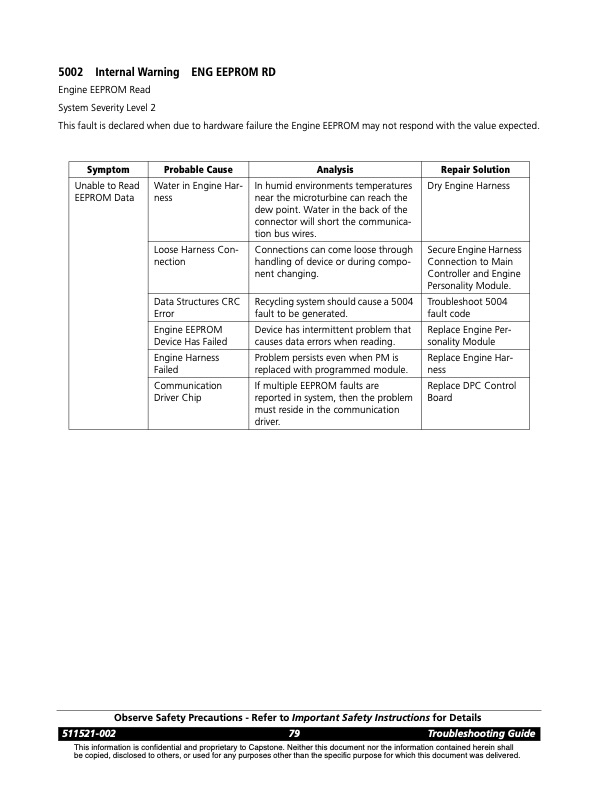

5002 Internal Warning ENG EEPROM RD Engine EEPROM Read System Severity Level 2 This fault is declared when due to hardware failure the Engine EEPROM may not respond with the value expected. Symptom Probable Cause Analysis Repair Solution Unable to Read EEPROM Data Water in Engine Har- ness In humid environments temperatures near the microturbine can reach the dew point. Water in the back of the connector will short the communica- tion bus wires. Dry Engine Harness Loose Harness Con- nection Connections can come loose through handling of device or during compo- nent changing. Secure Engine Harness Connection to Main Controller and Engine Personality Module. Data Structures CRC Error Recycling system should cause a 5004 fault to be generated. Troubleshoot 5004 fault code Engine EEPROM Device Has Failed Device has intermittent problem that causes data errors when reading. Replace Engine Per- sonality Module Engine Harness Failed Problem persists even when PM is replaced with programmed module. Replace Engine Har- ness Communication Driver Chip If multiple EEPROM faults are reported in system, then the problem must reside in the communication driver. Replace DPC Control Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 79 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Capstone SERIES 5000 FAULT CODES
