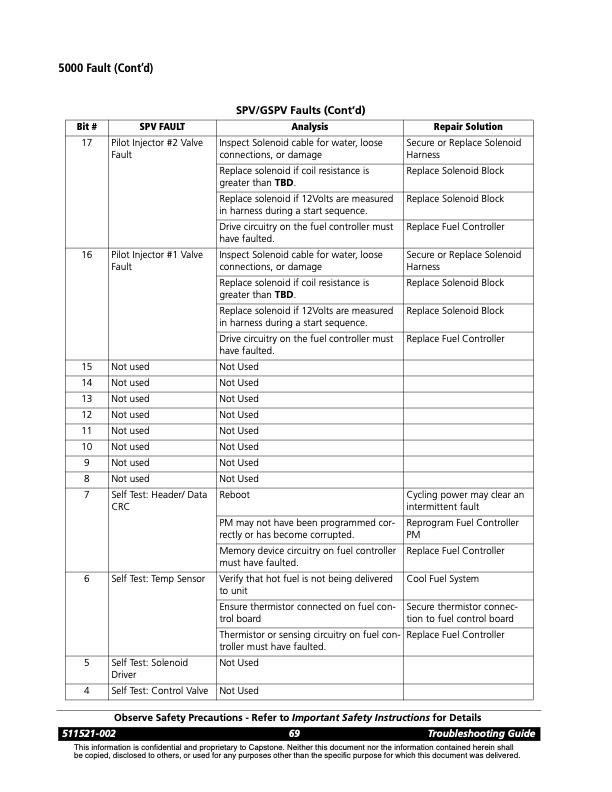

5000 Fault (Cont’d) SPV/GSPV Faults (Cont’d) Bit # SPV FAULT Analysis Repair Solution 17 Pilot Injector #2 Valve Fault Inspect Solenoid cable for water, loose connections, or damage Secure or Replace Solenoid Harness Replace solenoid if coil resistance is greater than TBD. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have faulted. Replace Fuel Controller 16 Pilot Injector #1 Valve Fault Inspect Solenoid cable for water, loose connections, or damage Secure or Replace Solenoid Harness Replace solenoid if coil resistance is greater than TBD. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have faulted. Replace Fuel Controller 15 Not used Not Used 14 Not used Not Used 13 Not used Not Used 12 Not used Not Used 11 Not used Not Used 10 Not used Not Used 9 Not used Not Used 8 Not used Not Used 7 Self Test: Header/ Data CRC Reboot Cycling power may clear an intermittent fault PM may not have been programmed cor- rectly or has become corrupted. Reprogram Fuel Controller PM Memory device circuitry on fuel controller must have faulted. Replace Fuel Controller 6 Self Test: Temp Sensor Verify that hot fuel is not being delivered to unit Cool Fuel System Ensure thermistor connected on fuel con- trol board Secure thermistor connec- tion to fuel control board Thermistor or sensing circuitry on fuel con- troller must have faulted. Replace Fuel Controller 5 Self Test: Solenoid Driver Not Used 4 Self Test: Control Valve Not Used Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 69 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Capstone SERIES 5000 FAULT CODES
