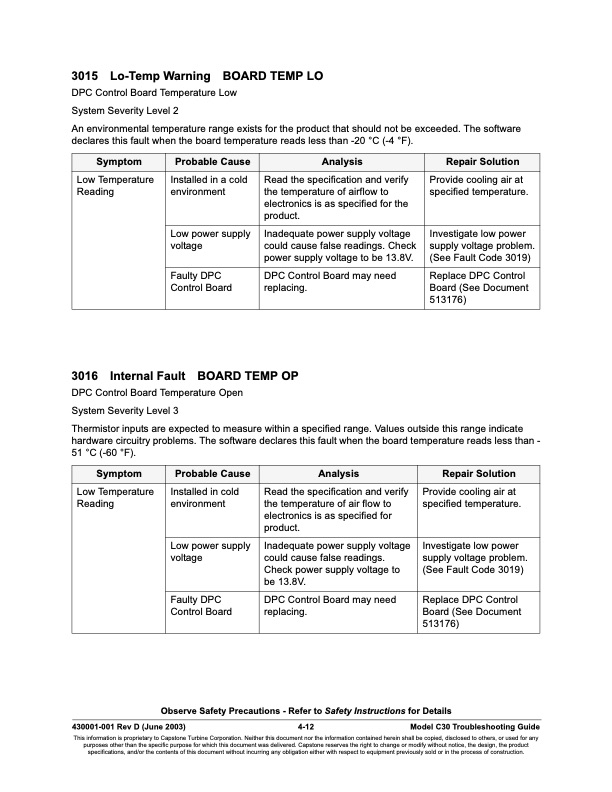

3015 Lo-Temp Warning BOARD TEMP LO DPC Control Board Temperature Low System Severity Level 2 An environmental temperature range exists for the product that should not be exceeded. The software declares this fault when the board temperature reads less than -20 °C (-4 °F). Symptom Probable Cause Analysis Repair Solution Low Temperature Reading Installed in a cold environment Read the specification and verify the temperature of airflow to electronics is as specified for the product. Provide cooling air at specified temperature. Low power supply voltage Inadequate power supply voltage could cause false readings. Check power supply voltage to be 13.8V. Investigate low power supply voltage problem. (See Fault Code 3019) Faulty DPC Control Board DPC Control Board may need replacing. Replace DPC Control Board (See Document 513176) 3016 Internal Fault BOARD TEMP OP DPC Control Board Temperature Open System Severity Level 3 Thermistor inputs are expected to measure within a specified range. Values outside this range indicate hardware circuitry problems. The software declares this fault when the board temperature reads less than - 51 °C (-60 °F). Symptom Probable Cause Analysis Repair Solution Low Temperature Reading Installed in cold environment Read the specification and verify the temperature of air flow to electronics is as specified for product. Provide cooling air at specified temperature. Low power supply voltage Inadequate power supply voltage could cause false readings. Check power supply voltage to be 13.8V. Investigate low power supply voltage problem. (See Fault Code 3019) Faulty DPC Control Board DPC Control Board may need replacing. Replace DPC Control Board (See Document 513176) Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 4-12 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone SERIES 3000 FAULT CODES Sensor Faults
