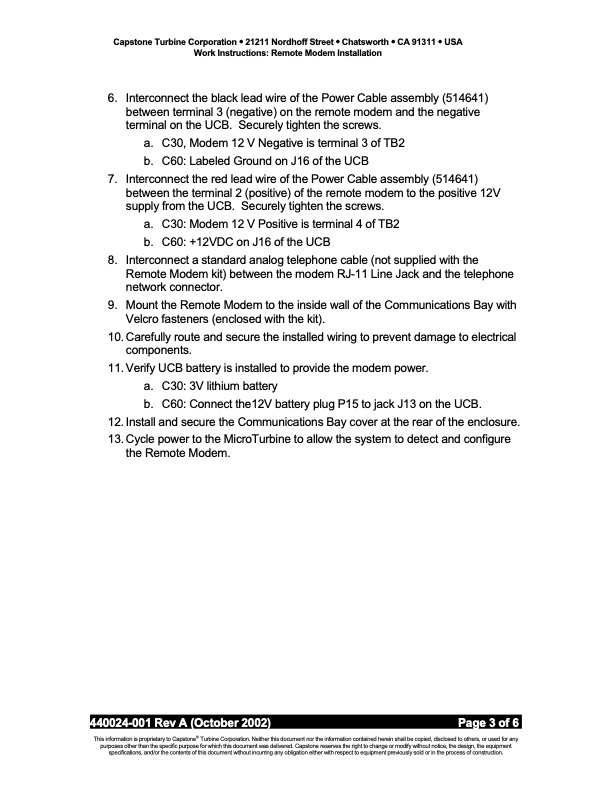

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Remote Modem Installation 6. InterconnecttheblackleadwireofthePowerCableassembly(514641) between terminal 3 (negative) on the remote modem and the negative terminal on the UCB. Securely tighten the screws. a. C30,Modem12VNegativeisterminal3ofTB2 b. C60:LabeledGroundonJ16oftheUCB 7. InterconnecttheredleadwireofthePowerCableassembly(514641) between the terminal 2 (positive) of the remote modem to the positive 12V supply from the UCB. Securely tighten the screws. a. C30:Modem12VPositiveisterminal4ofTB2 b. C60:+12VDConJ16oftheUCB 8. Interconnectastandardanalogtelephonecable(notsuppliedwiththe Remote Modem kit) between the modem RJ-11 Line Jack and the telephone network connector. 9. MounttheRemoteModemtotheinsidewalloftheCommunicationsBaywith Velcro fasteners (enclosed with the kit). 10. Carefully route and secure the installed wiring to prevent damage to electrical components. 11. Verify UCB battery is installed to provide the modem power. a. C30:3Vlithiumbattery b. C60:Connectthe12VbatteryplugP15tojackJ13ontheUCB. 12. Install and secure the Communications Bay cover at the rear of the enclosure. 13. Cycle power to the MicroTurbine to allow the system to detect and configure the Remote Modem. 440024-001 Rev A (October 2002) Page 3 of 6. This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Remote Modem Installation
PDF Search Title:
Work Instructions Remote Modem InstallationOriginal File Name Searched:
440024_Remote_Modem.pdfDIY PDF Search: Google It | Yahoo | Bing
