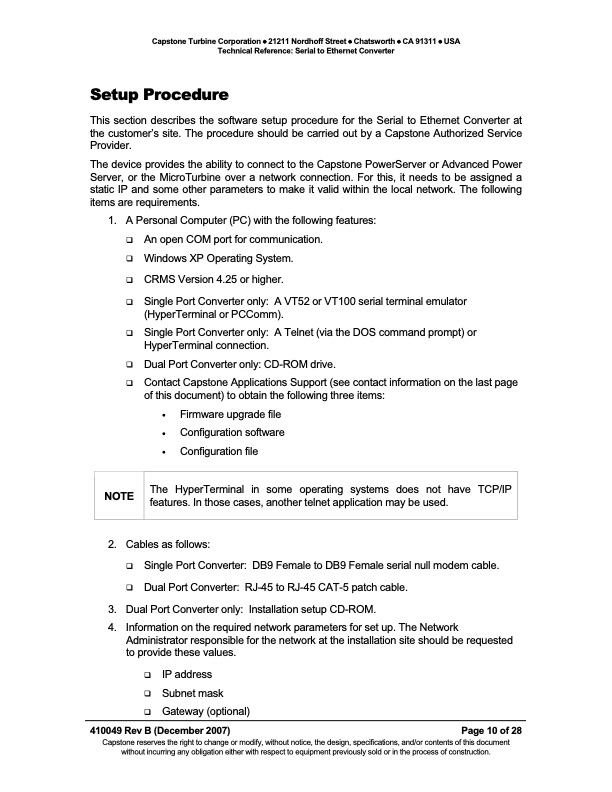

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Serial to Ethernet Converter Setup Procedure This section describes the software setup procedure for the Serial to Ethernet Converter at the customer’s site. The procedure should be carried out by a Capstone Authorized Service Provider. The device provides the ability to connect to the Capstone PowerServer or Advanced Power Server, or the MicroTurbine over a network connection. For this, it needs to be assigned a static IP and some other parameters to make it valid within the local network. The following items are requirements. 1. A Personal Computer (PC) with the following features: AnopenCOMportforcommunication. WindowsXPOperatingSystem. CRMSVersion4.25orhigher. Single Port Converter only: A VT52 or VT100 serial terminal emulator (HyperTerminal or PCComm). Single Port Converter only: A Telnet (via the DOS command prompt) or HyperTerminal connection. DualPortConverteronly:CD-ROMdrive. ContactCapstoneApplicationsSupport(seecontactinformationonthelastpage of this document) to obtain the following three items: • Firmware upgrade file • Configuration software • Configuration file 2. Cables as follows: Single Port Converter: DB9 Female to DB9 Female serial null modem cable. Dual Port Converter: RJ-45 to RJ-45 CAT-5 patch cable. 3. Dual Port Converter only: Installation setup CD-ROM. 4. Information on the required network parameters for set up. The Network Administrator responsible for the network at the installation site should be requested to provide these values. IPaddress Subnetmask Gateway(optional) 410049 Rev B (December 2007) Page 10 of 28 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE The HyperTerminal in some operating systems does not have TCP/IP features. In those cases, another telnet application may be used.PDF Image | Technical Reference Serial to Ethernet Converter
