PDF Publication Title:
Text from PDF Page: 007

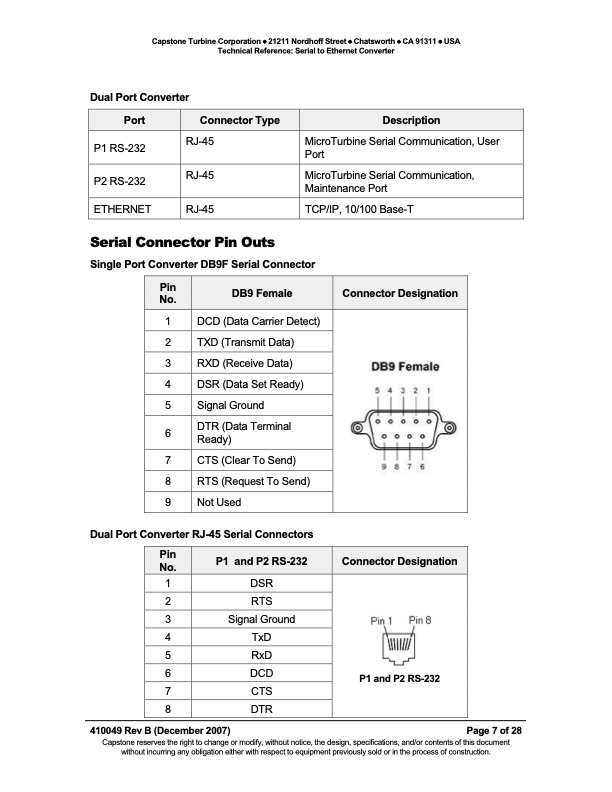

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Serial to Ethernet Converter Dual Port Converter Port Connector Type Description P1 RS-232 P2 RS-232 ETHERNET RJ-45 MicroTurbine Serial Communication, User Port RJ-45 MicroTurbine Serial Communication, Maintenance Port RJ-45 TCP/IP, 10/100 Base-T Serial Connector Pin Outs Single Port Converter DB9F Serial Connector 1 DCD (Data Carrier Detect) 2 TXD (Transmit Data) 3 RXD (Receive Data) 4 DSR (Data Set Ready) 5 Signal Ground DTR (Data Terminal Ready) 7 CTS (Clear To Send) 8 RTS (Request To Send) 9 Not Used Dual Port Converter RJ-45 Serial Connectors Pin No. DB9 Female Connector Designation 6 Pin No. P1 and P2 RS-232 Connector Designation 1 2 3 4 5 6 7 8 DSR RTS Signal Ground TxD RxD DCD CTS DTR P1 and P2 RS-232 410049 Rev B (December 2007) Page 7 of 28 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Serial to Ethernet Converter
