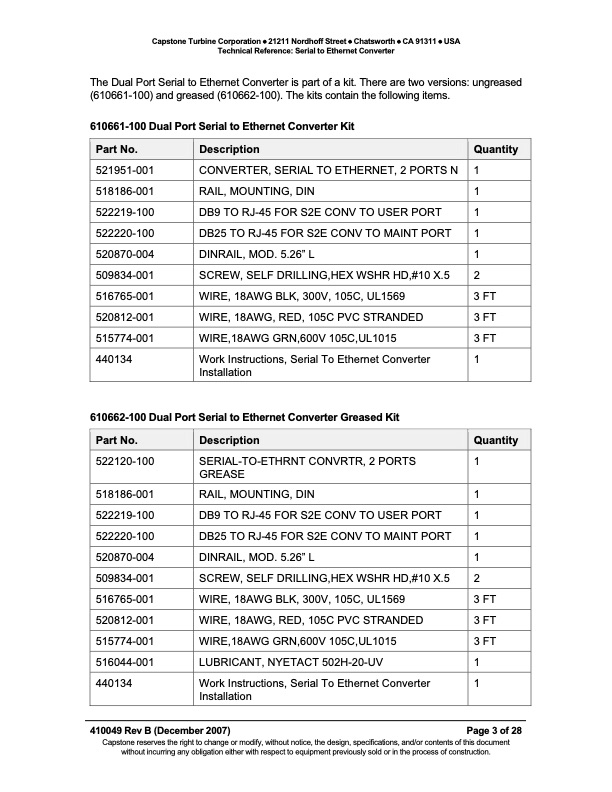

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Serial to Ethernet Converter The Dual Port Serial to Ethernet Converter is part of a kit. There are two versions: ungreased (610661-100) and greased (610662-100). The kits contain the following items. 610661-100 Dual Port Serial to Ethernet Converter Kit Part No. Description Quantity 521951-001 518186-001 522219-100 522220-100 520870-004 509834-001 516765-001 520812-001 515774-001 440134 CONVERTER, SERIAL TO ETHERNET, 2 PORTS N RAIL, MOUNTING, DIN DB9 TO RJ-45 FOR S2E CONV TO USER PORT DB25 TO RJ-45 FOR S2E CONV TO MAINT PORT DINRAIL, MOD. 5.26” L SCREW, SELF DRILLING,HEX WSHR HD,#10 X.5 WIRE, 18AWG BLK, 300V, 105C, UL1569 WIRE, 18AWG, RED, 105C PVC STRANDED WIRE,18AWG GRN,600V 105C,UL1015 Work Instructions, Serial To Ethernet Converter Installation 1 1 1 1 1 2 3 FT 3 FT 3 FT 1 1 1 1 1 1 2 3 FT 3 FT 3 FT 1 1 Page 3 of 28 610662-100 Dual Port Serial to Ethernet Converter Greased Kit Part No. Description Quantity 522120-100 518186-001 522219-100 522220-100 520870-004 509834-001 516765-001 520812-001 515774-001 516044-001 440134 SERIAL-TO-ETHRNT CONVRTR, 2 PORTS GREASE RAIL, MOUNTING, DIN DB9 TO RJ-45 FOR S2E CONV TO USER PORT DB25 TO RJ-45 FOR S2E CONV TO MAINT PORT DINRAIL, MOD. 5.26” L SCREW, SELF DRILLING,HEX WSHR HD,#10 X.5 WIRE, 18AWG BLK, 300V, 105C, UL1569 WIRE, 18AWG, RED, 105C PVC STRANDED WIRE,18AWG GRN,600V 105C,UL1015 LUBRICANT, NYETACT 502H-20-UV Work Instructions, Serial To Ethernet Converter Installation 410049 Rev B (December 2007) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Serial to Ethernet Converter
