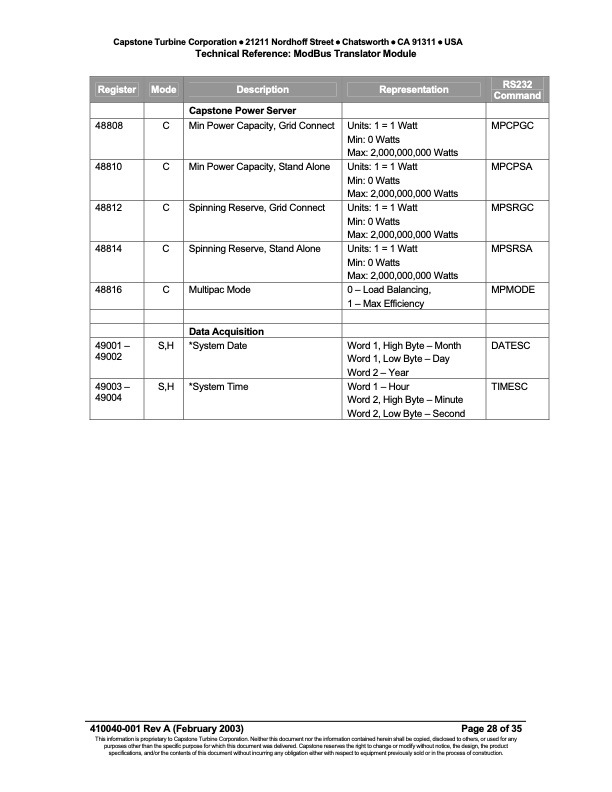

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: ModBus Translator Module Capstone Power Server Register Mode Description Representation RS232 Command 48808 C Min Power Capacity, Grid Connect Units: 1 = 1 Watt Min: 0 Watts Max: 2,000,000,000 Watts MPCPGC 48810 C Min Power Capacity, Stand Alone Units: 1 = 1 Watt Min: 0 Watts Max: 2,000,000,000 Watts MPCPSA 48812 C Spinning Reserve, Grid Connect Units: 1 = 1 Watt Min: 0 Watts Max: 2,000,000,000 Watts MPSRGC 48814 C Spinning Reserve, Stand Alone Units: 1 = 1 Watt Min: 0 Watts Max: 2,000,000,000 Watts MPSRSA 48816 C Multipac Mode 0 – Load Balancing, 1 – Max Efficiency Data Acquisition MPMODE 49001 – 49002 S,H *System Date Word 1, High Byte – Month Word 1, Low Byte – Day Word 2 – Year DATESC 49003 – 49004 S,H *System Time Word 1 – Hour Word 2, High Byte – Minute Word 2, Low Byte – Second TIMESC 410040-001 Rev A (February 2003) Page 28 of 35 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Modbus Translator Module
