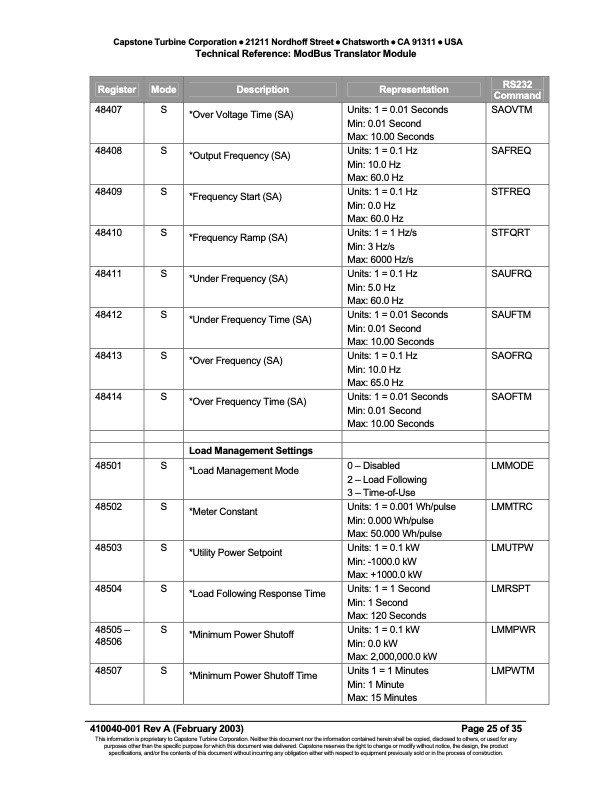

Text from PDF Page: 027
Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: ModBus Translator Module Register Mode Description Representation RS232 Command 48407 S *Over Voltage Time (SA) Units: 1 = 0.01 Seconds Min: 0.01 Second Max: 10.00 Seconds SAOVTM 48408 S *Output Frequency (SA) Units: 1 = 0.1 Hz Min: 10.0 Hz Max: 60.0 Hz SAFREQ 48409 S *Frequency Start (SA) Units: 1 = 0.1 Hz Min: 0.0 Hz Max: 60.0 Hz STFREQ 48410 S *Frequency Ramp (SA) Units: 1 = 1 Hz/s Min: 3 Hz/s Max: 6000 Hz/s STFQRT 48411 S *Under Frequency (SA) Units: 1 = 0.1 Hz Min: 5.0 Hz Max: 60.0 Hz SAUFRQ 48412 S *Under Frequency Time (SA) Units: 1 = 0.01 Seconds Min: 0.01 Second Max: 10.00 Seconds SAUFTM 48413 S *Over Frequency (SA) Units: 1 = 0.1 Hz Min: 10.0 Hz Max: 65.0 Hz SAOFRQ 48414 S *Over Frequency Time (SA) Units: 1 = 0.01 Seconds Min: 0.01 Second Max: 10.00 Seconds SAOFTM Load Management Settings 48501 S *Load Management Mode 0 – Disabled 2 – Load Following 3 – Time-of-Use LMMODE 48502 S *Meter Constant Units: 1 = 0.001 Wh/pulse Min: 0.000 Wh/pulse Max: 50.000 Wh/pulse LMMTRC 48503 S *Utility Power Setpoint Units: 1 = 0.1 kW Min: -1000.0 kW Max: +1000.0 kW LMUTPW 48504 S *Load Following Response Time Units: 1 = 1 Second Min: 1 Second Max: 120 Seconds LMRSPT 48505 – 48506 S *Minimum Power Shutoff Units: 1 = 0.1 kW Min: 0.0 kW Max: 2,000,000.0 kW LMMPWR 48507 S *Minimum Power Shutoff Time Units 1 = 1 Minutes Min: 1 Minute Max: 15 Minutes LMPWTM 410040-001 Rev A (February 2003) Page 25 of 35 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Modbus Translator Module
