PDF Publication Title:
Text from PDF Page: 019

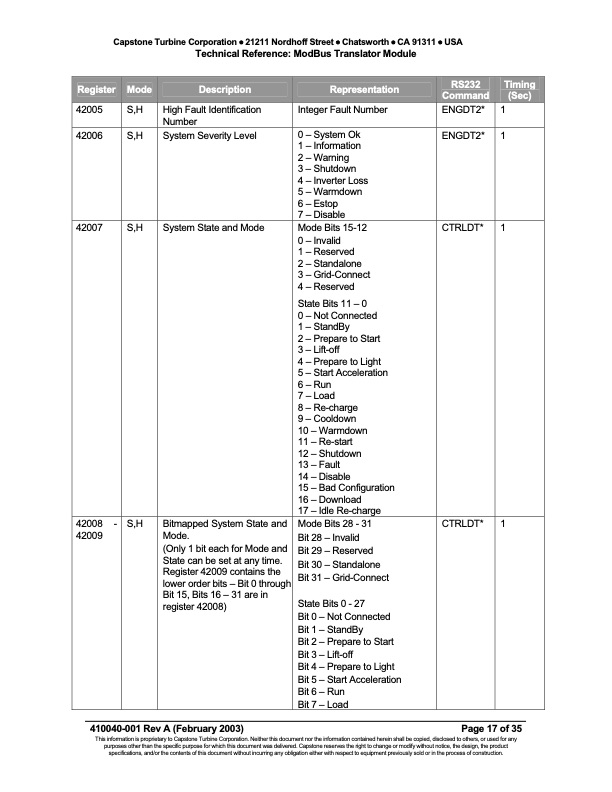

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: ModBus Translator Module 42005 S,H High Fault Identification Integer Fault Number ENGDT2* 1 Number Register Mode Description Representation RS232 Command Timing (Sec) 42006 S,H System Severity Level 0 – System Ok 1 – Information 2 – Warning 3 – Shutdown 4 – Inverter Loss 5 – Warmdown 6 – Estop 7 – Disable ENGDT2* 1 42007 S,H System State and Mode Mode Bits 15-12 0 – Invalid 1 – Reserved 2 – Standalone 3 – Grid-Connect 4 – Reserved State Bits 11 – 0 0 – Not Connected 1 – StandBy 2 – Prepare to Start 3 – Lift-off 4 – Prepare to Light 5 – Start Acceleration 6–Run 7–Load 8 – Re-charge 9 – Cooldown 10 – Warmdown 11 – Re-start 12 – Shutdown 13 – Fault 14 – Disable 15 – Bad Configuration 16 – Download 17 – Idle Re-charge CTRLDT* 1 42008 - 42009 S,H Bitmapped System State and Mode. (Only 1 bit each for Mode and State can be set at any time. Register 42009 contains the lower order bits – Bit 0 through Bit15,Bits16–31arein register 42008) Mode Bits 28 - 31 Bit 28 – Invalid Bit 29 – Reserved Bit 30 – Standalone Bit 31 – Grid-Connect State Bits 0 - 27 Bit 0 – Not Connected Bit 1 – StandBy Bit 2 – Prepare to Start Bit 3 – Lift-off Bit 4 – Prepare to Light Bit 5 – Start Acceleration Bit6–Run Bit7–Load CTRLDT* 1 410040-001 Rev A (February 2003) Page 17 of 35 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Modbus Translator Module
