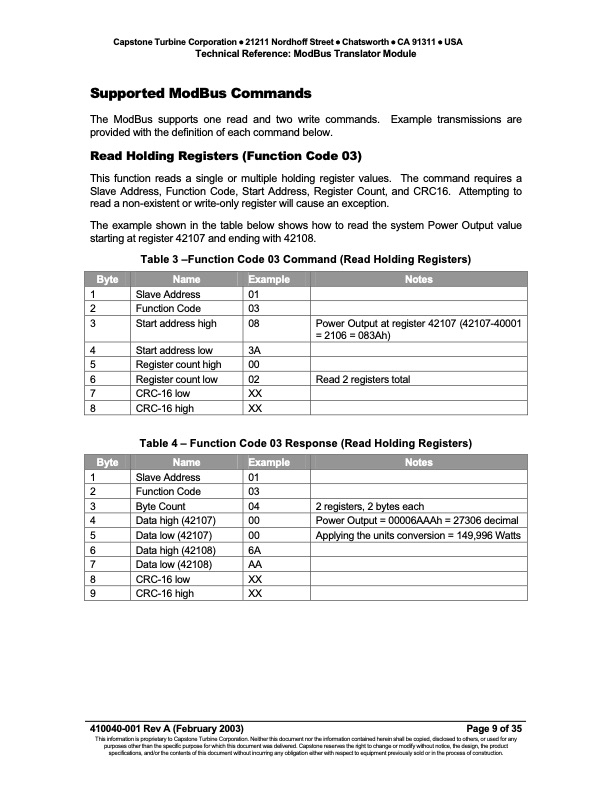

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: ModBus Translator Module Supported ModBus Commands The ModBus supports one read and two write commands. Example transmissions are provided with the definition of each command below. Read Holding Registers (Function Code 03) This function reads a single or multiple holding register values. The command requires a Slave Address, Function Code, Start Address, Register Count, and CRC16. Attempting to read a non-existent or write-only register will cause an exception. The example shown in the table below shows how to read the system Power Output value starting at register 42107 and ending with 42108. Table 3 –Function Code 03 Command (Read Holding Registers) Byte Name Example Notes 1 Slave Address 01 2 Function Code 03 3 Start address high 08 4 Start address low 3A 5 Register count high 00 6 Register count low 02 7 CRC-16 low XX 8 CRC-16 high XX Power Output at register 42107 (42107-40001 = 2106 = 083Ah) Read 2 registers total Table 4 – Function Code 03 Response (Read Holding Registers) Byte Name Example Notes 1 Slave Address 01 2 Function Code 03 3 Byte Count 04 4 Data high (42107) 00 5 Data low (42107) 00 6 Data high (42108) 6A 7 Data low (42108) AA 8 CRC-16 low XX 9 CRC-16 high XX 2 registers, 2 bytes each Power Output = 00006AAAh = 27306 decimal Applying the units conversion = 149,996 Watts 410040-001 Rev A (February 2003) Page 9 of 35 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Modbus Translator Module
