Text from PDF Page: 007

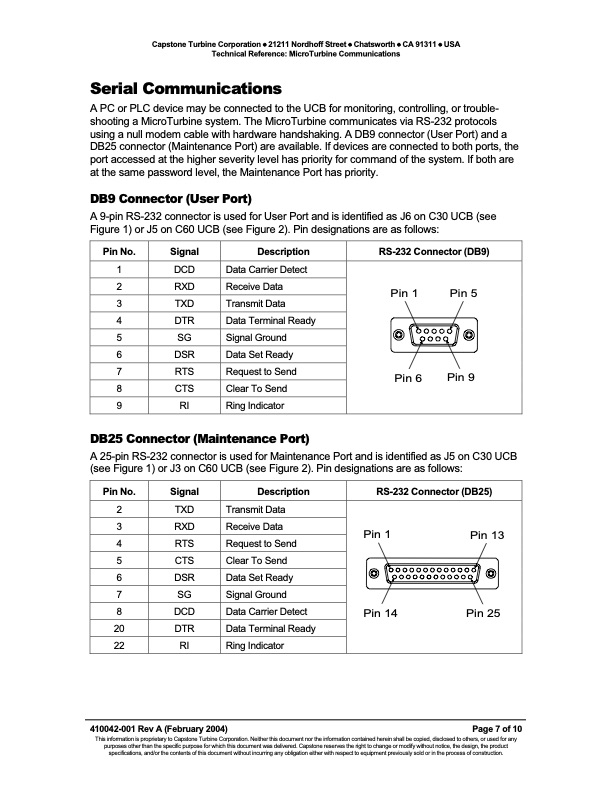

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: MicroTurbine Communications Serial Communications A PC or PLC device may be connected to the UCB for monitoring, controlling, or trouble- shooting a MicroTurbine system. The MicroTurbine communicates via RS-232 protocols using a null modem cable with hardware handshaking. A DB9 connector (User Port) and a DB25 connector (Maintenance Port) are available. If devices are connected to both ports, the port accessed at the higher severity level has priority for command of the system. If both are at the same password level, the Maintenance Port has priority. DB9 Connector (User Port) A 9-pin RS-232 connector is used for User Port and is identified as J6 on C30 UCB (see Figure 1) or J5 on C60 UCB (see Figure 2). Pin designations are as follows: Pin No. Signal 1 DCD 2 RXD 3 TXD 4 DTR 5 SG 6 DSR 7 RTS 8 CTS 9 RI Description Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request to Send Clear To Send Ring Indicator RS-232 Connector (DB9) Pin 1 Pin 6 Pin 5 Pin 9 DB25 Connector (Maintenance Port) A 25-pin RS-232 connector is used for Maintenance Port and is identified as J5 on C30 UCB (see Figure 1) or J3 on C60 UCB (see Figure 2). Pin designations are as follows: Pin No. Signal 2 TXD 3 RXD 4 RTS 5 CTS 6 DSR 7 SG 8 DCD 20 DTR 22 RI Description Transmit Data Receive Data Request to Send Clear To Send Data Set Ready Signal Ground Data Carrier Detect Data Terminal Ready Ring Indicator RS-232 Connector (DB25) Pin 1 Pin 14 Pin 13 Pin 25 Page 7 of 10 410042-001 Rev A (February 2004) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference MicroTurbine Communications
