Text from PDF Page: 003

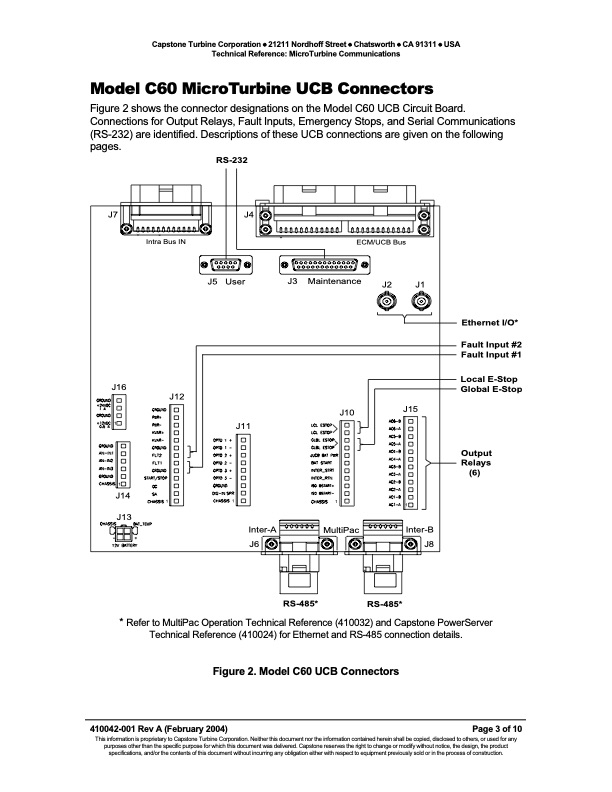

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: MicroTurbine Communications Model C60 MicroTurbine UCB Connectors Figure 2 shows the connector designations on the Model C60 UCB Circuit Board. Connections for Output Relays, Fault Inputs, Emergency Stops, and Serial Communications (RS-232) are identified. Descriptions of these UCB connections are given on the following pages. J7 RS-232 J4 J5 User Intra Bus IN ECM/UCB Bus J16 J12 Ethernet I/O* Fault Input #2 Fault Input #1 Local E-Stop Global E-Stop Output Relays (6) 1 1 J14 J13 J11 111 Inter-A J6 RS-485* MultiPac J3 Maintenance J2 J1 J15 1 Inter-B J8 RS-485* * Refer to MultiPac Operation Technical Reference (410032) and Capstone PowerServer Technical Reference (410024) for Ethernet and RS-485 connection details. Figure 2. Model C60 UCB Connectors 410042-001 Rev A (February 2004) Page 3 of 10 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. J10PDF Image | Technical Reference MicroTurbine Communications
