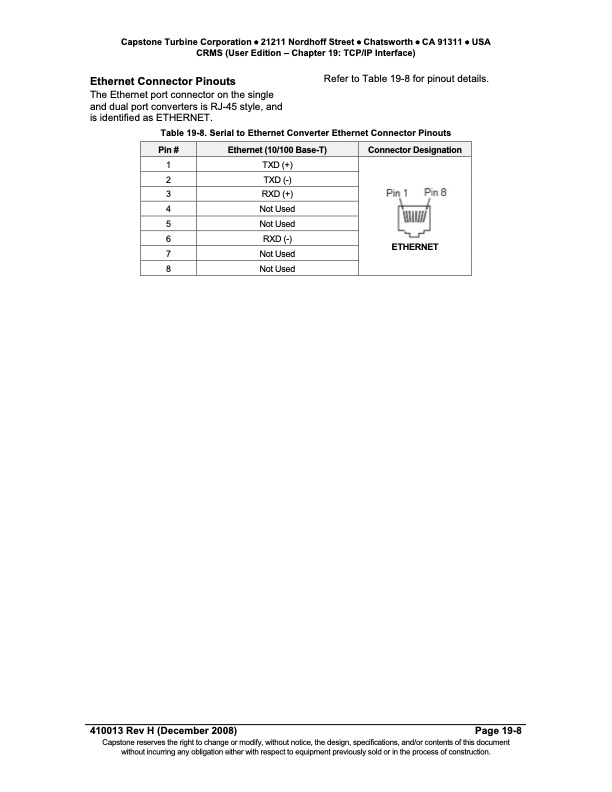

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 19: TCP/IP Interface) Ethernet Connector Pinouts The Ethernet port connector on the single and dual port converters is RJ-45 style, and is identified as ETHERNET. Table 19-8. Serial to Ethernet Converter Ethernet Connector Pinouts Refer to Table 19-8 for pinout details. Pin # Ethernet (10/100 Base-T) Connector Designation 1 2 3 4 5 6 7 8 TXD (+) TXD (-) RXD (+) Not Used Not Used RXD (-) Not Used Not Used ETHERNET 410013 Rev H (December 2008) Page 19-8 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
