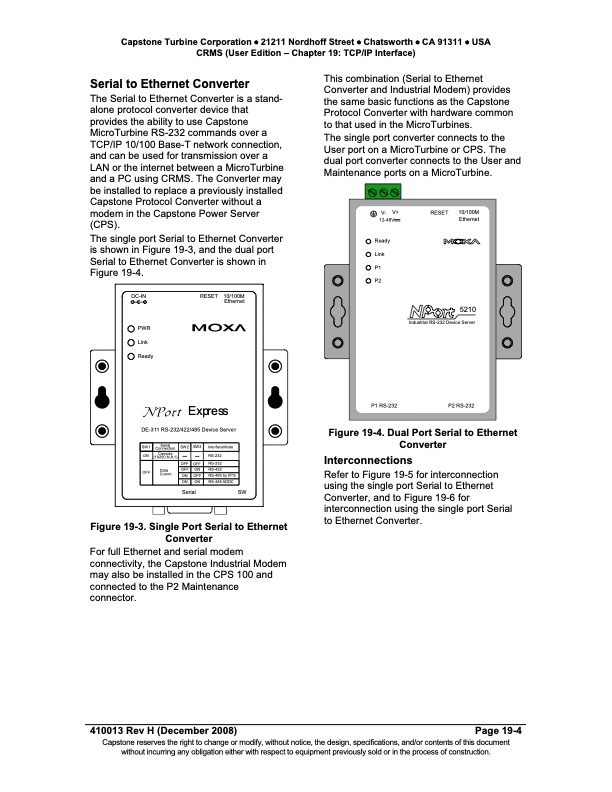

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 19: TCP/IP Interface) Serial to Ethernet Converter The Serial to Ethernet Converter is a stand- alone protocol converter device that provides the ability to use Capstone MicroTurbine RS-232 commands over a TCP/IP 10/100 Base-T network connection, and can be used for transmission over a LAN or the internet between a MicroTurbine and a PC using CRMS. The Converter may be installed to replace a previously installed Capstone Protocol Converter without a modem in the Capstone Power Server (CPS). The single port Serial to Ethernet Converter is shown in Figure 19-3, and the dual port Serial to Ethernet Converter is shown in Figure 19-4. This combination (Serial to Ethernet Converter and Industrial Modem) provides the same basic functions as the Capstone Protocol Converter with hardware common to that used in the MicroTurbines. The single port converter connects to the User port on a MicroTurbine or CPS. The dual port converter connects to the User and Maintenance ports on a MicroTurbine. V- V+ 12-48V Ready Link P1 P2 RESET 10/100M Ethernet P1 RS-232 5210 Industrial RS-232 Device Server P2 RS-232 DC-IN PWR Link Ready RESET 10/100M Ethernet Express DE-311 RS-232/422/485 Device Serve r Serial SW SW1 Serial Connection SW2 SW3 InterfaceMode ON Console (19200,N,8,1) RS-232 OFF Data Comm. OFF OFF OFF ON ON OFF ON ON RS-232 RS-422 RS-485 by RTS RS-485 ADDC Figure 19-3. Single Port Serial to Ethernet Converter For full Ethernet and serial modem connectivity, the Capstone Industrial Modem may also be installed in the CPS 100 and connected to the P2 Maintenance connector. Figure 19-4. Dual Port Serial to Ethernet Converter Interconnections Refer to Figure 19-5 for interconnection using the single port Serial to Ethernet Converter, and to Figure 19-6 for interconnection using the single port Serial to Ethernet Converter. 410013 Rev H (December 2008) Page 19-4 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
