PDF Publication Title:
Text from PDF Page: 064

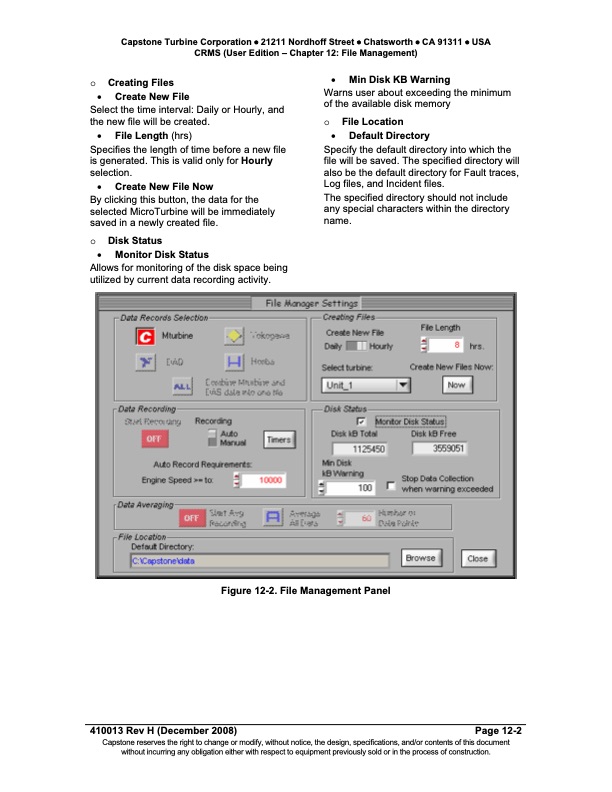

o Creating Files Create New File Min Disk KB Warning Warns user about exceeding the minimum of the available disk memory o File Location Default Directory Specify the default directory into which the file will be saved. The specified directory will also be the default directory for Fault traces, Log files, and Incident files. The specified directory should not include any special characters within the directory name. Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 12: File Management) Select the time interval: Daily or Hourly, and the new file will be created. File Length (hrs) Specifies the length of time before a new file is generated. This is valid only for Hourly selection. Create New File Now By clicking this button, the data for the selected MicroTurbine will be immediately saved in a newly created file. o Disk Status Monitor Disk Status Allows for monitoring of the disk space being utilized by current data recording activity. 410013 Rev H (December 2008) Page 12-2 Figure 12-2. File Management Panel Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
PDF Search Title:
Technical Reference Capstone Remote Monitoring System (User Edition)Original File Name Searched:
410013H_CRMS_User_Edition_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
