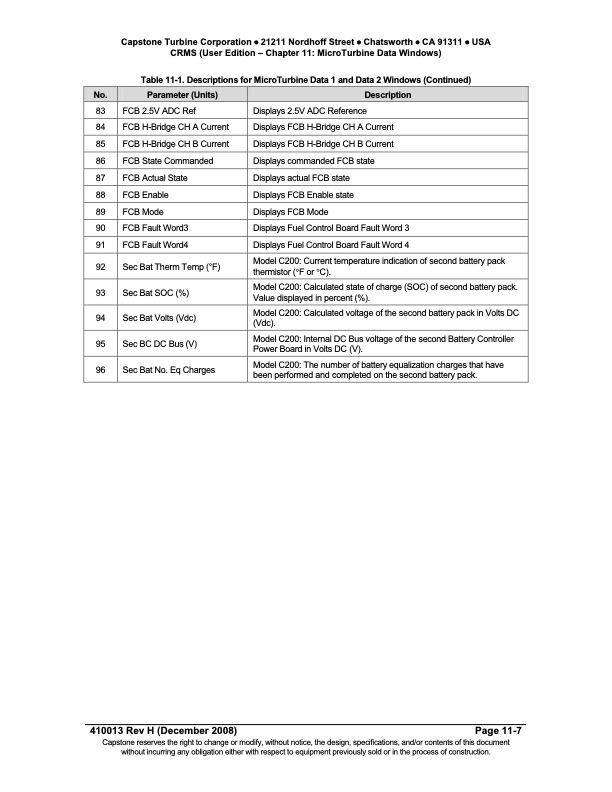

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 11: MicroTurbine Data Windows) Table 11-1. Descriptions for MicroTurbine Data 1 and Data 2 Windows (Continued) No. Parameter (Units) Description 83 FCB 2.5V ADC Ref 84 FCB H-Bridge CH A Current 85 FCB H-Bridge CH B Current 86 FCB State Commanded 87 FCB Actual State 88 FCB Enable 89 FCB Mode 90 FCB Fault Word3 91 FCB Fault Word4 92 Sec Bat Therm Temp (°F) 93 Sec Bat SOC (%) 94 Sec Bat Volts (Vdc) 95 Sec BC DC Bus (V) 96 Sec Bat No. Eq Charges Displays 2.5V ADC Reference Displays FCB H-Bridge CH A Current Displays FCB H-Bridge CH B Current Displays commanded FCB state Displays actual FCB state Displays FCB Enable state Displays FCB Mode Displays Fuel Control Board Fault Word 3 Displays Fuel Control Board Fault Word 4 Model C200: Current temperature indication of second battery pack thermistor (F or C). Model C200: Calculated state of charge (SOC) of second battery pack. Value displayed in percent (%). Model C200: Calculated voltage of the second battery pack in Volts DC (Vdc). Model C200: Internal DC Bus voltage of the second Battery Controller Power Board in Volts DC (V). Model C200: The number of battery equalization charges that have been performed and completed on the second battery pack. 410013 Rev H (December 2008) Page 11-7 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
