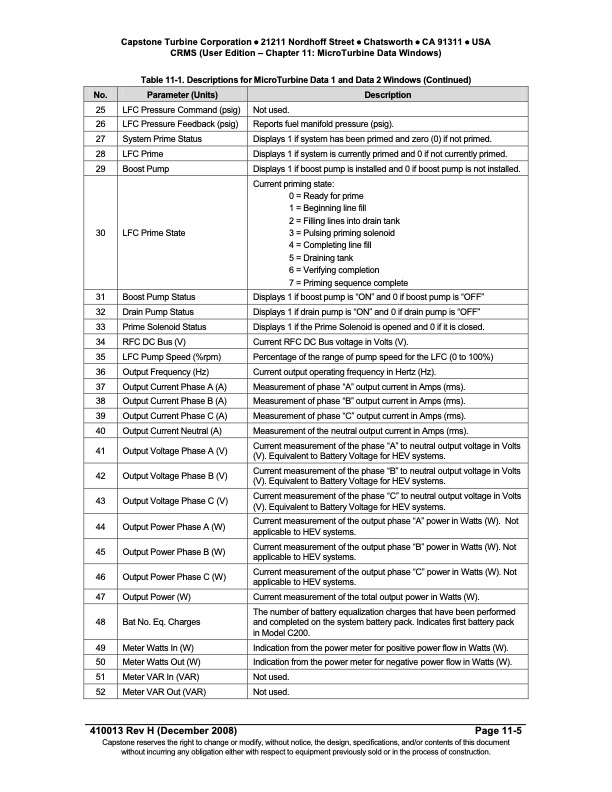

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 11: MicroTurbine Data Windows) Table 11-1. Descriptions for MicroTurbine Data 1 and Data 2 Windows (Continued) No. Parameter (Units) Description 25 LFC Pressure Command (psig) 26 LFC Pressure Feedback (psig) 27 System Prime Status 28 LFC Prime 29 Boost Pump Not used. Reports fuel manifold pressure (psig). Displays 1 if system has been primed and zero (0) if not primed. Displays 1 if system is currently primed and 0 if not currently primed. Displays 1 if boost pump is installed and 0 if boost pump is not installed. 30 LFC Prime State Current priming state: 0 = Ready for prime 1 = Beginning line fill 2 = Filling lines into drain tank 3 = Pulsing priming solenoid 4 = Completing line fill 5 = Draining tank 6 = Verifying completion 7 = Priming sequence complete 31 Boost Pump Status 32 Drain Pump Status 33 Prime Solenoid Status 34 RFC DC Bus (V) 35 LFC Pump Speed (%rpm) 36 Output Frequency (Hz) 37 Output Current Phase A (A) 38 Output Current Phase B (A) 39 Output Current Phase C (A) 40 Output Current Neutral (A) 41 Output Voltage Phase A (V) 42 Output Voltage Phase B (V) 43 Output Voltage Phase C (V) Displays 1 if boost pump is “ON” and 0 if boost pump is “OFF” Displays 1 if drain pump is “ON” and 0 if drain pump is “OFF” Displays 1 if the Prime Solenoid is opened and 0 if it is closed. Current RFC DC Bus voltage in Volts (V). Percentage of the range of pump speed for the LFC (0 to 100%) Current output operating frequency in Hertz (Hz). Measurement of phase “A” output current in Amps (rms). Measurement of phase “B” output current in Amps (rms). Measurement of phase “C” output current in Amps (rms). Measurement of the neutral output current in Amps (rms). Current measurement of the phase “A” to neutral output voltage in Volts (V). Equivalent to Battery Voltage for HEV systems. Current measurement of the phase “B” to neutral output voltage in Volts (V). Equivalent to Battery Voltage for HEV systems. Current measurement of the phase “C” to neutral output voltage in Volts (V). Equivalent to Battery Voltage for HEV systems. Current measurement of the output phase “A” power in Watts (W). Not applicable to HEV systems. Current measurement of the output phase “B” power in Watts (W). Not applicable to HEV systems. Current measurement of the output phase “C” power in Watts (W). Not applicable to HEV systems. Current measurement of the total output power in Watts (W). The number of battery equalization charges that have been performed and completed on the system battery pack. Indicates first battery pack in Model C200. Indication from the power meter for positive power flow in Watts (W). Indication from the power meter for negative power flow in Watts (W). Not used. Not used. Page 11-5 44 Output Power Phase 45 Output Power Phase 46 Output Power Phase 47 Output Power (W) 48 Bat No. Eq. Charges A (W) B (W) C (W) 49 Meter Watts In (W) 50 Meter Watts Out (W) 51 Meter VAR In (VAR) 52 Meter VAR Out (VAR) 410013 Rev H (December 2008) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
