Text from PDF Page: 039

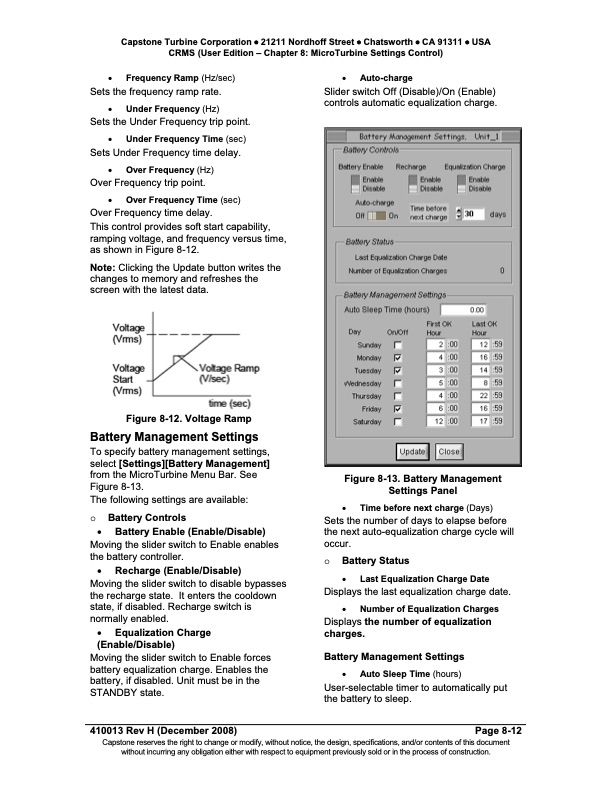

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 8: MicroTurbine Settings Control) Frequency Ramp (Hz/sec) Sets the frequency ramp rate. Under Frequency (Hz) Sets the Under Frequency trip point. Under Frequency Time (sec) Sets Under Frequency time delay. Over Frequency (Hz) Over Frequency trip point. Over Frequency Time (sec) Over Frequency time delay. This control provides soft start capability, ramping voltage, and frequency versus time, as shown in Figure 8-12. Note: Clicking the Update button writes the changes to memory and refreshes the screen with the latest data. Figure 8-12. Voltage Ramp Battery Management Settings To specify battery management settings, select [Settings][Battery Management] from the MicroTurbine Menu Bar. See Figure 8-13. The following settings are available: o Battery Controls Battery Enable (Enable/Disable) Moving the slider switch to Enable enables the battery controller. Recharge (Enable/Disable) Moving the slider switch to disable bypasses the recharge state. It enters the cooldown state, if disabled. Recharge switch is normally enabled. Equalization Charge (Enable/Disable) Moving the slider switch to Enable forces battery equalization charge. Enables the battery, if disabled. Unit must be in the STANDBY state. 410013 Rev H (December 2008) Auto-charge Slider switch Off (Disable)/On (Enable) controls automatic equalization charge. Figure 8-13. Battery Management Settings Panel Time before next charge (Days) Sets the number of days to elapse before the next auto-equalization charge cycle will occur. o Battery Status Last Equalization Charge Date Displays the last equalization charge date. Number of Equalization Charges Displays the number of equalization charges. Battery Management Settings Auto Sleep Time (hours) User-selectable timer to automatically put the battery to sleep. Page 8-12 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
PDF Search Title:
Technical Reference Capstone Remote Monitoring System (User Edition)Original File Name Searched:
410013H_CRMS_User_Edition_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
