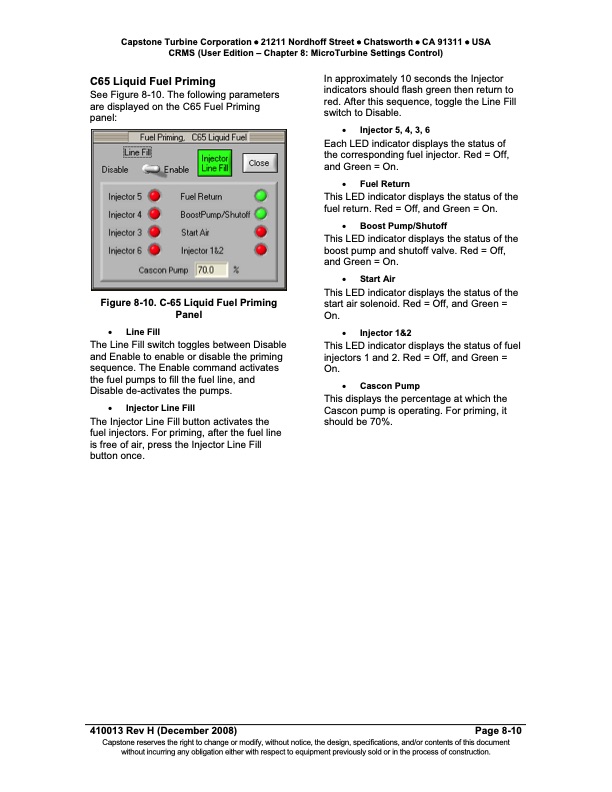

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 8: MicroTurbine Settings Control) C65 Liquid Fuel Priming See Figure 8-10. The following parameters are displayed on the C65 Fuel Priming panel: Figure 8-10. C-65 Liquid Fuel Priming Panel Line Fill The Line Fill switch toggles between Disable and Enable to enable or disable the priming sequence. The Enable command activates the fuel pumps to fill the fuel line, and Disable de-activates the pumps. Injector Line Fill The Injector Line Fill button activates the fuel injectors. For priming, after the fuel line is free of air, press the Injector Line Fill button once. In approximately 10 seconds the Injector indicators should flash green then return to red. After this sequence, toggle the Line Fill switch to Disable. Injector 5, 4, 3, 6 Each LED indicator displays the status of the corresponding fuel injector. Red = Off, and Green = On. Fuel Return This LED indicator displays the status of the fuel return. Red = Off, and Green = On. Boost Pump/Shutoff This LED indicator displays the status of the boost pump and shutoff valve. Red = Off, and Green = On. Start Air This LED indicator displays the status of the start air solenoid. Red = Off, and Green = On. Injector 1&2 This LED indicator displays the status of fuel injectors 1 and 2. Red = Off, and Green = On. Cascon Pump This displays the percentage at which the Cascon pump is operating. For priming, it should be 70%. 410013 Rev H (December 2008) Page 8-10 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
