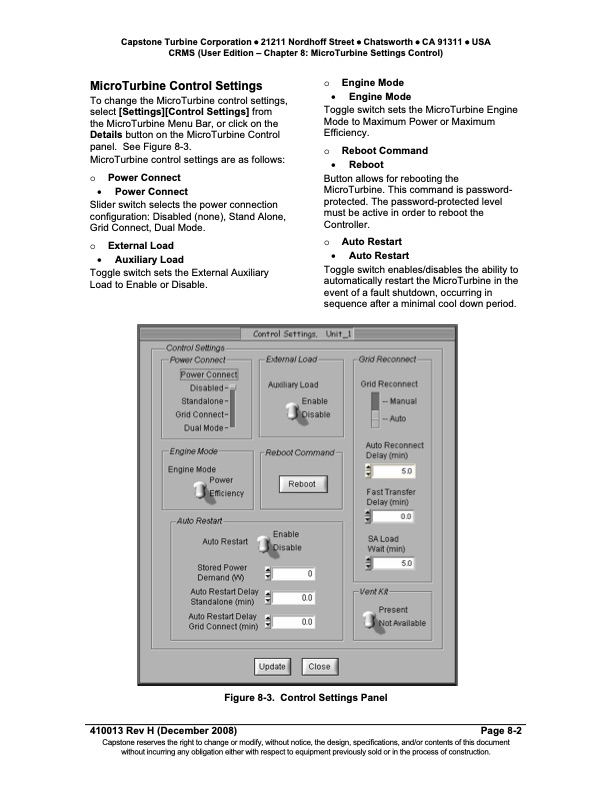

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 8: MicroTurbine Settings Control) MicroTurbine Control Settings To change the MicroTurbine control settings, select [Settings][Control Settings] from the MicroTurbine Menu Bar, or click on the Details button on the MicroTurbine Control panel. See Figure 8-3. MicroTurbine control settings are as follows: o Power Connect Power Connect Slider switch selects the power connection configuration: Disabled (none), Stand Alone, Grid Connect, Dual Mode. o External Load Auxiliary Load Toggle switch sets the External Auxiliary Load to Enable or Disable. o Engine Mode Engine Mode Toggle switch sets the MicroTurbine Engine Mode to Maximum Power or Maximum Efficiency. o Reboot Command Reboot Button allows for rebooting the MicroTurbine. This command is password- protected. The password-protected level must be active in order to reboot the Controller. o Auto Restart Auto Restart Toggle switch enables/disables the ability to automatically restart the MicroTurbine in the event of a fault shutdown, occurring in sequence after a minimal cool down period. Figure 8-3. Control Settings Panel 410013 Rev H (December 2008) Page 8-2 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
