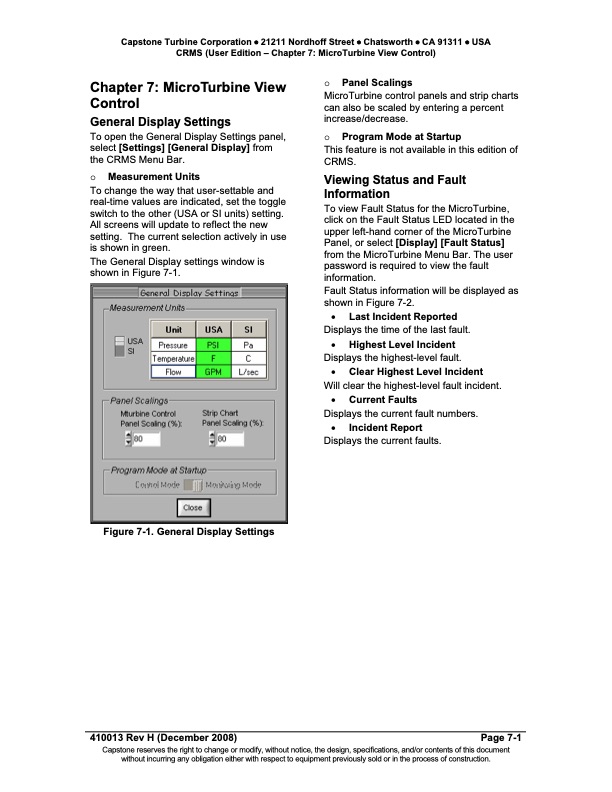

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 7: MicroTurbine View Control) Chapter 7: MicroTurbine View Control General Display Settings To open the General Display Settings panel, select [Settings] [General Display] from the CRMS Menu Bar. o Measurement Units To change the way that user-settable and real-time values are indicated, set the toggle switch to the other (USA or SI units) setting. All screens will update to reflect the new setting. The current selection actively in use is shown in green. The General Display settings window is shown in Figure 7-1. Figure 7-1. General Display Settings o Panel Scalings MicroTurbine control panels and strip charts can also be scaled by entering a percent increase/decrease. o Program Mode at Startup This feature is not available in this edition of CRMS. Viewing Status and Fault Information To view Fault Status for the MicroTurbine, click on the Fault Status LED located in the upper left-hand corner of the MicroTurbine Panel, or select [Display] [Fault Status] from the MicroTurbine Menu Bar. The user password is required to view the fault information. Fault Status information will be displayed as shown in Figure 7-2. Last Incident Reported Displays the time of the last fault. Highest Level Incident Displays the highest-level fault. Clear Highest Level Incident Will clear the highest-level fault incident. 410013 Rev H (December 2008) Page 7-1 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Current Faults Displays the current fault numbers. Incident Report Displays the current faults.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
