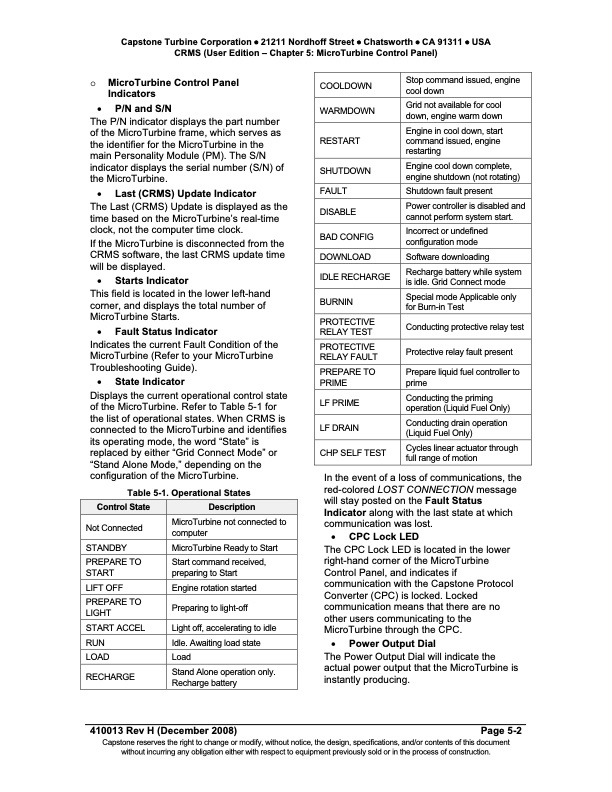

o MicroTurbine Control Panel Indicators P/N and S/N COOLDOWN WARMDOWN RESTART SHUTDOWN FAULT DISABLE BAD CONFIG DOWNLOAD IDLE RECHARGE BURNIN PROTECTIVE RELAY TEST PROTECTIVE RELAY FAULT PREPARE TO PRIME LF PRIME LF DRAIN CHP SELF TEST Stop command issued, engine cool down Grid not available for cool down, engine warm down Engine in cool down, start command issued, engine restarting Engine cool down complete, engine shutdown (not rotating) Shutdown fault present Power controller is disabled and cannot perform system start. Incorrect or undefined configuration mode Software downloading Recharge battery while system is idle. Grid Connect mode Special mode Applicable only for Burn-in Test Conducting protective relay test Protective relay fault present Prepare liquid fuel controller to prime Conducting the priming operation (Liquid Fuel Only) Conducting drain operation (Liquid Fuel Only) Cycles linear actuator through full range of motion Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 5: MicroTurbine Control Panel) The P/N indicator displays the part number of the MicroTurbine frame, which serves as the identifier for the MicroTurbine in the main Personality Module (PM). The S/N indicator displays the serial number (S/N) of the MicroTurbine. Last (CRMS) Update Indicator The Last (CRMS) Update is displayed as the time based on the MicroTurbine’s real-time clock, not the computer time clock. If the MicroTurbine is disconnected from the CRMS software, the last CRMS update time will be displayed. Starts Indicator This field is located in the lower left-hand corner, and displays the total number of MicroTurbine Starts. Fault Status Indicator Indicates the current Fault Condition of the MicroTurbine (Refer to your MicroTurbine Troubleshooting Guide). State Indicator Displays the current operational control state of the MicroTurbine. Refer to Table 5-1 for the list of operational states. When CRMS is connected to the MicroTurbine and identifies its operating mode, the word “State” is replaced by either “Grid Connect Mode” or “Stand Alone Mode,” depending on the configuration of the MicroTurbine. Table 5-1. Operational States In the event of a loss of communications, the red-colored LOST CONNECTION message will stay posted on the Fault Status Indicator along with the last state at which communication was lost. CPC Lock LED The CPC Lock LED is located in the lower right-hand corner of the MicroTurbine Control Panel, and indicates if communication with the Capstone Protocol Converter (CPC) is locked. Locked communication means that there are no other users communicating to the MicroTurbine through the CPC. Power Output Dial The Power Output Dial will indicate the actual power output that the MicroTurbine is instantly producing. Page 5-2 Control State Description Not Connected STANDBY PREPARE TO START LIFT OFF PREPARE TO LIGHT START ACCEL RUN LOAD RECHARGE MicroTurbine not connected to computer MicroTurbine Ready to Start Start command received, preparing to Start Engine rotation started Preparing to light-off Light off, accelerating to idle Idle. Awaiting load state Load Stand Alone operation only. Recharge battery 410013 Rev H (December 2008) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
