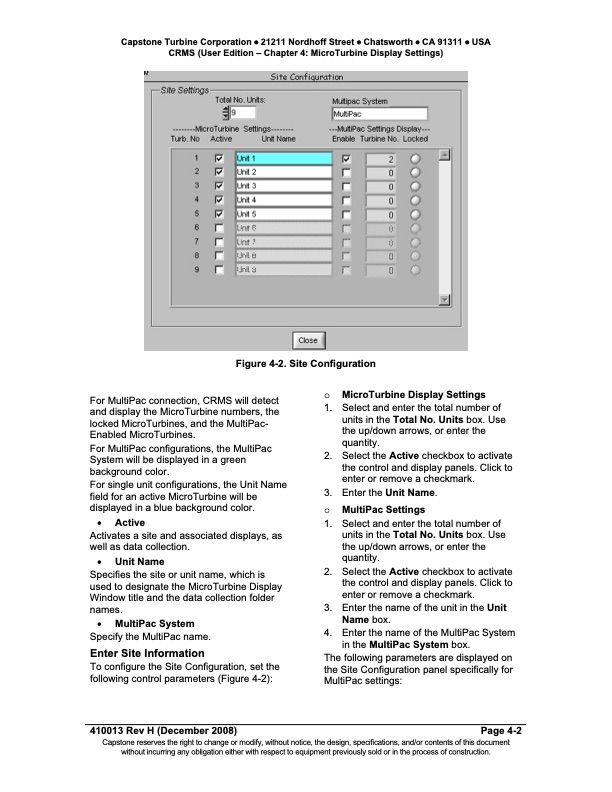

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 4: MicroTurbine Display Settings) Figure 4-2. Site Configuration For MultiPac connection, CRMS will detect and display the MicroTurbine numbers, the locked MicroTurbines, and the MultiPac- Enabled MicroTurbines. For MultiPac configurations, the MultiPac System will be displayed in a green background color. For single unit configurations, the Unit Name field for an active MicroTurbine will be displayed in a blue background color. Active Activates a site and associated displays, as well as data collection. Unit Name Specifies the site or unit name, which is used to designate the MicroTurbine Display Window title and the data collection folder names. MultiPac System Specify the MultiPac name. Enter Site Information To configure the Site Configuration, set the following control parameters (Figure 4-2): 410013 Rev H (December 2008) o MicroTurbine Display Settings 1. Select and enter the total number of units in the Total No. Units box. Use the up/down arrows, or enter the quantity. 2. Select the Active checkbox to activate the control and display panels. Click to enter or remove a checkmark. 3. Enter the Unit Name. o MultiPac Settings 1. Select and enter the total number of units in the Total No. Units box. Use the up/down arrows, or enter the quantity. 2. Select the Active checkbox to activate the control and display panels. Click to enter or remove a checkmark. 3. Enter the name of the unit in the Unit Name box. 4. Enter the name of the MultiPac System in the MultiPac System box. The following parameters are displayed on the Site Configuration panel specifically for MultiPac settings: Page 4-2 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
